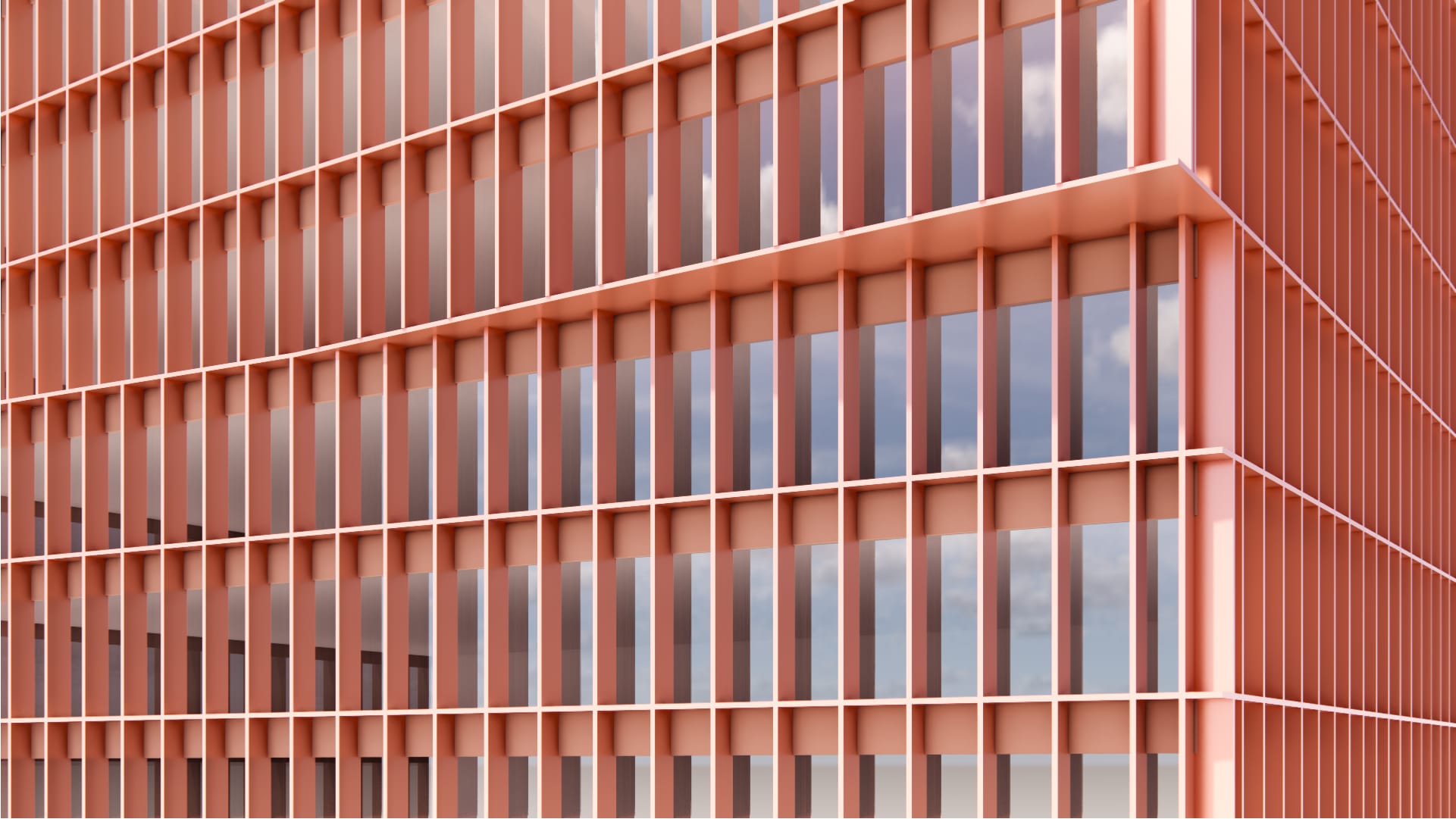

Main Facade View
Blade Grid
Orthogonal Frame Grid
A facade defined by a continuous, orthogonal grid of deep vertical blades. The framework utilizes uniform framed cassettes that emphasize vertical directionality. The vertical elements provide effective passive shading, and a low window-to-wall ratio (<40%) can be achieved by optimizing the header and parapet heights.

Tags:

Single-Skin
Orthogonal Grid
Frames/Cassettes
Vertical
Metal
Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8

Already a member? Log in to download

Already a member? Log in to download

Setup instructions:

  1. Download the .GH Framework script.

  2. Open Rhino, launch Grasshopper, and open the script.

  3. Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
