Chevron Weave

Folded Vertical Fin System

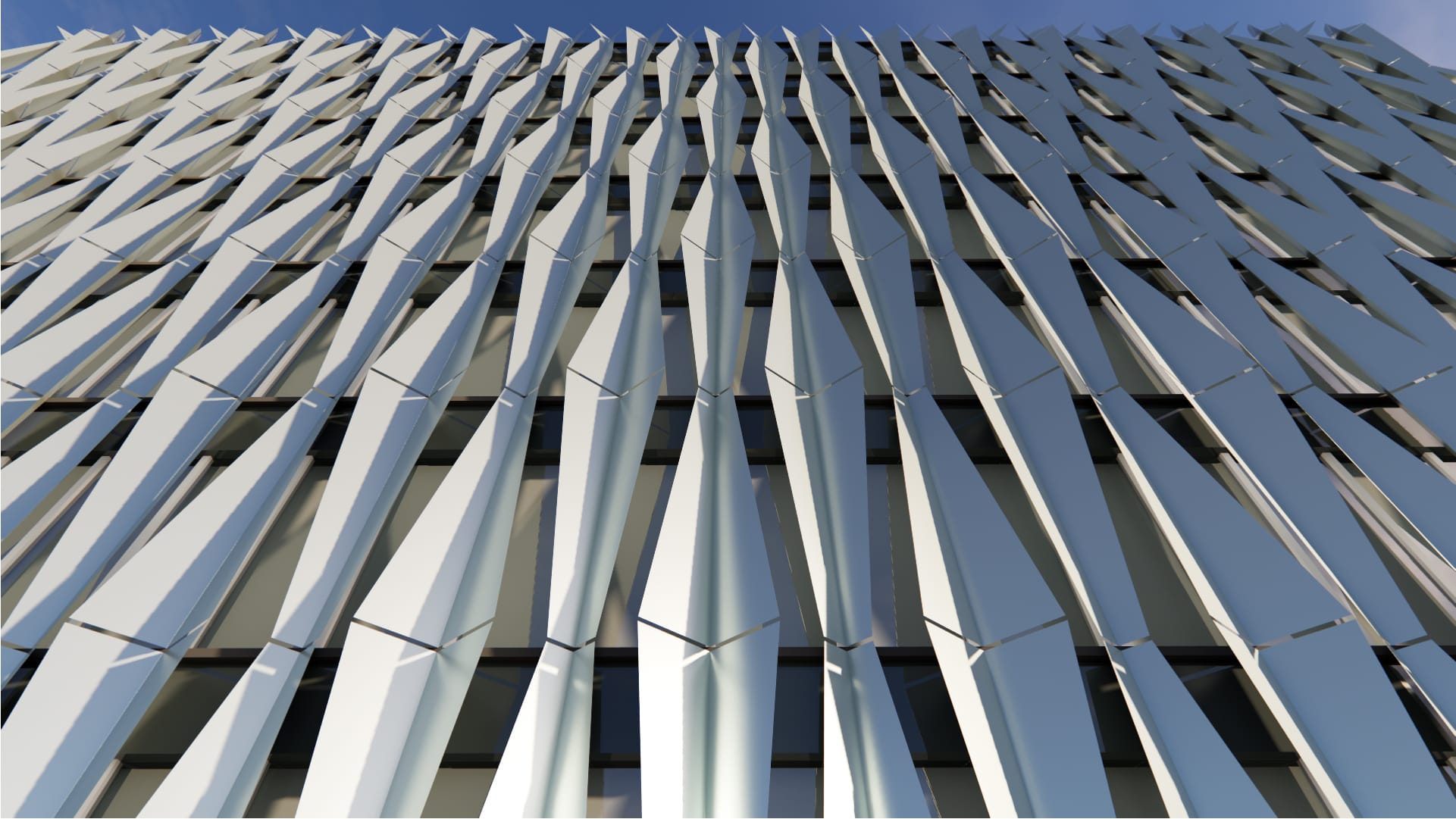

A vertical fin screen defined by vertical, folded fin profiles. Using an alternating, sequenced logic, the fins are angled to create a dynamic, woven chevron texture. The vertical elements deliver effective passive shading.

Tags:

Screen

Orthogonal Grid

Fins

Vertical

Metal

Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
