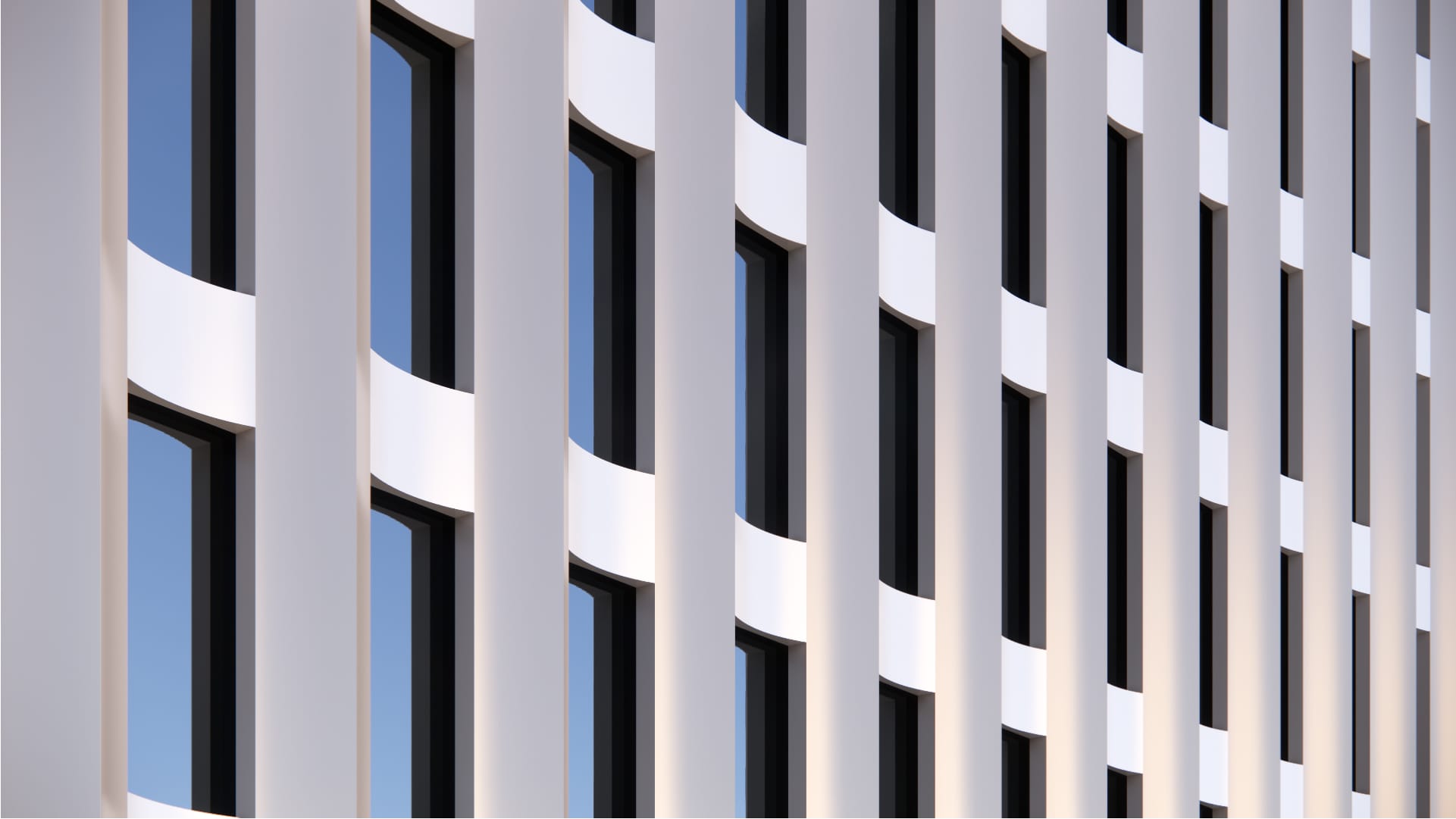

Main Facade View
Concave Waves
Concave Panel System
A single-skin facade system made of concave panels with a central glazed aperture. The framework creates a rhythmic, wave-like exterior. The sculpted elements can be realized in either metal or precast concrete and provide partial passive shading through its depth. The alternating layout of aperture and panel leads to a low window-to-wall ratio (<40%).

Tags:

Single-Skin
Orthogonal Grid
3D/Sculpted Panels
Vertical
Metal
Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8

Already a member? Log in to download

Already a member? Log in to download

Setup instructions:

  1. Download the .GH Framework script.

  2. Open Rhino, launch Grasshopper, and open the script.

  3. Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
