Dash Cascade

Randomized Vertical Perforations

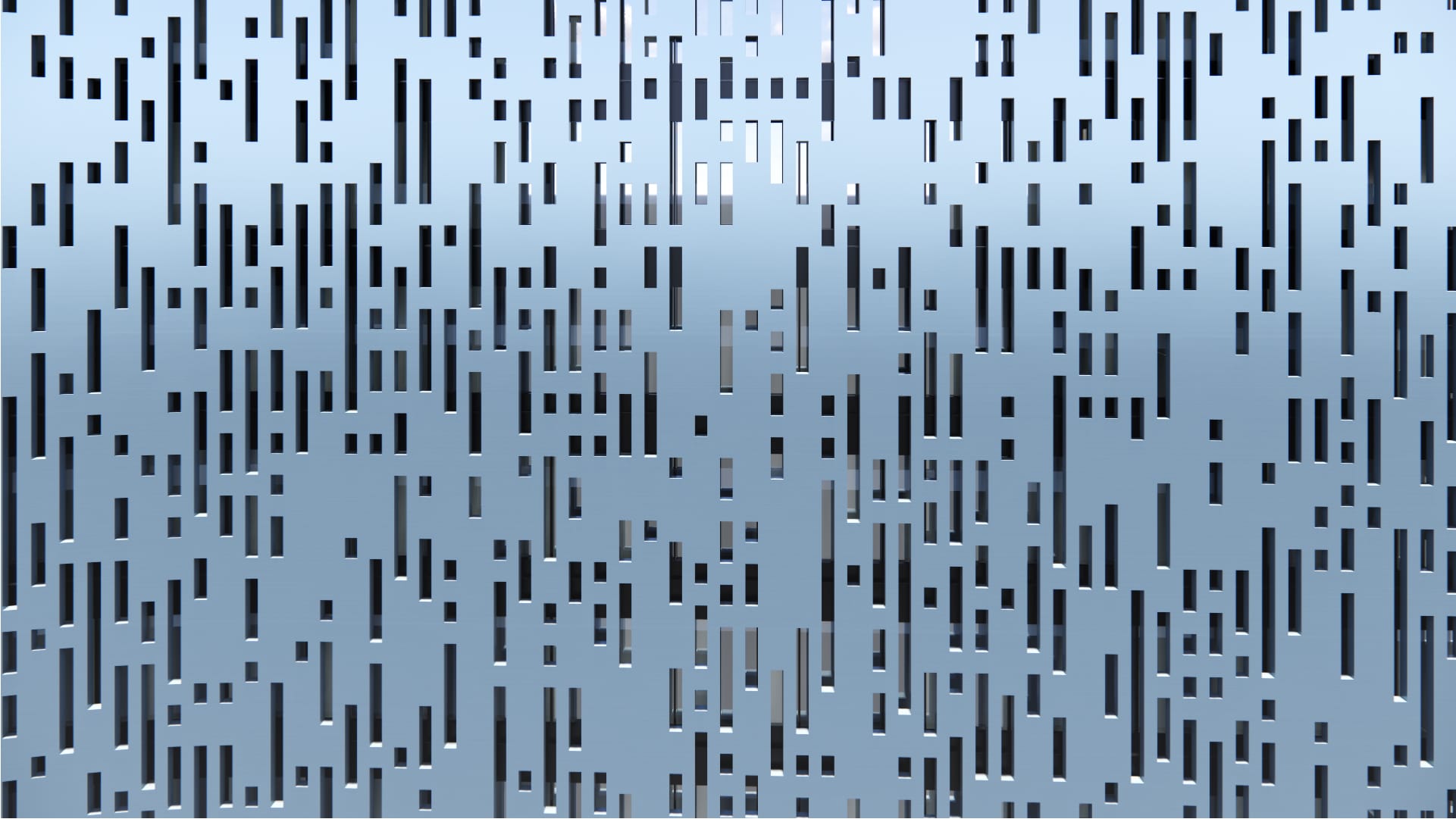

A perforated screen that uses a randomized logic to distributes vertical slit apertures across the surface generating a cascading texture. The perforated screen can act as an effective passive shading device.

Tags:

Screen

Skin/ Wrapping / Monolithic

Perforated Surface

Vertical

Metal

Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
