Diagrid Screen
Parametric facade framework for Rhino + Grasshopper

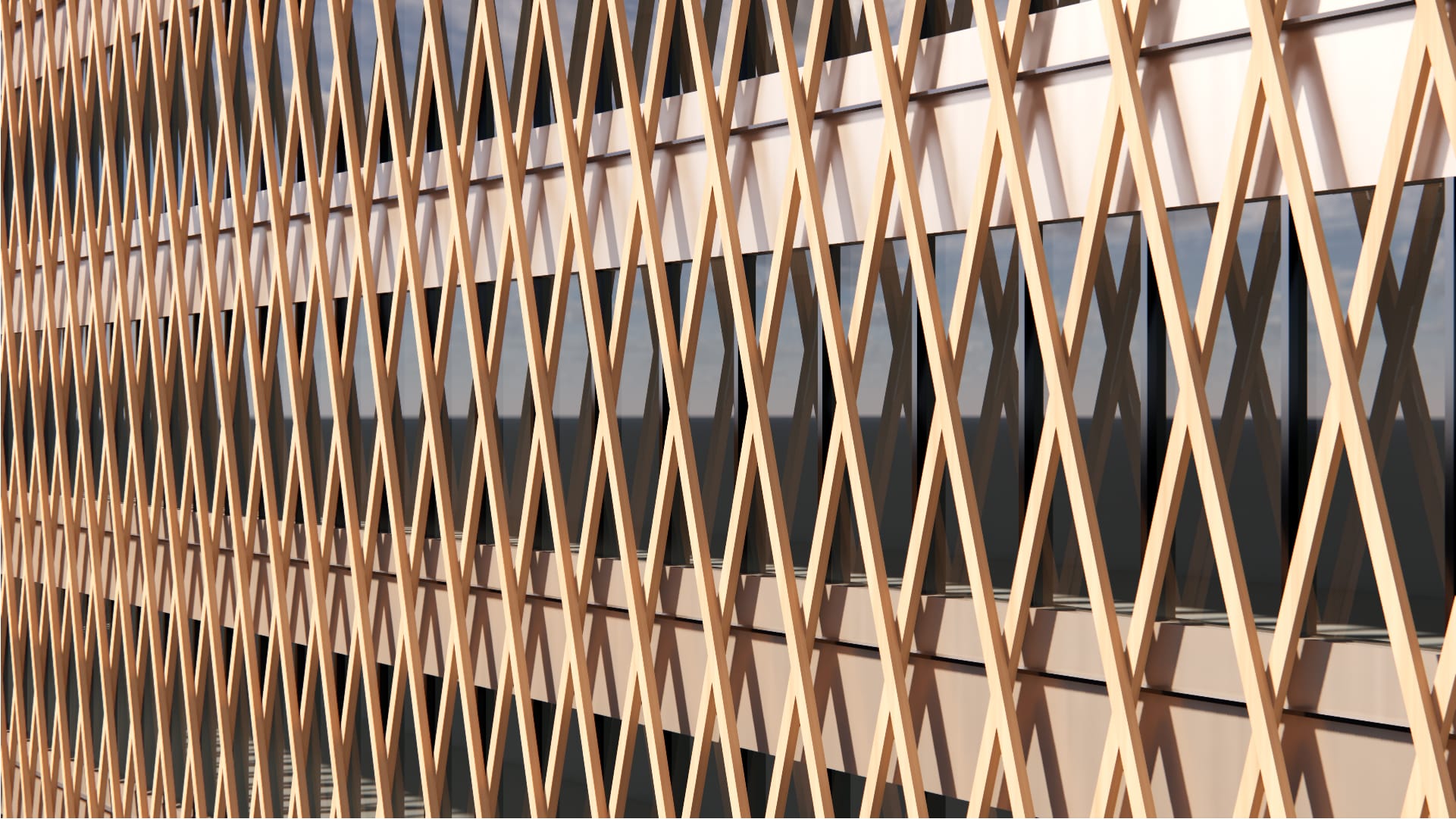

Timber Diagrid Screen
A continuous exterior screen system composed of timber fins arranged in a diagrid configuration. The thin wooden elements create a filigree that offers partial passive shading for the primary facade behind.
Screen
Diagrid
Sticks/Filigree
Balanced
Timber
Low WWR Capable (< 40%), Passive Shading
Vertical surfaces & polysurfaces
14-day free trial · installs via Rhino’s Package Manager.
