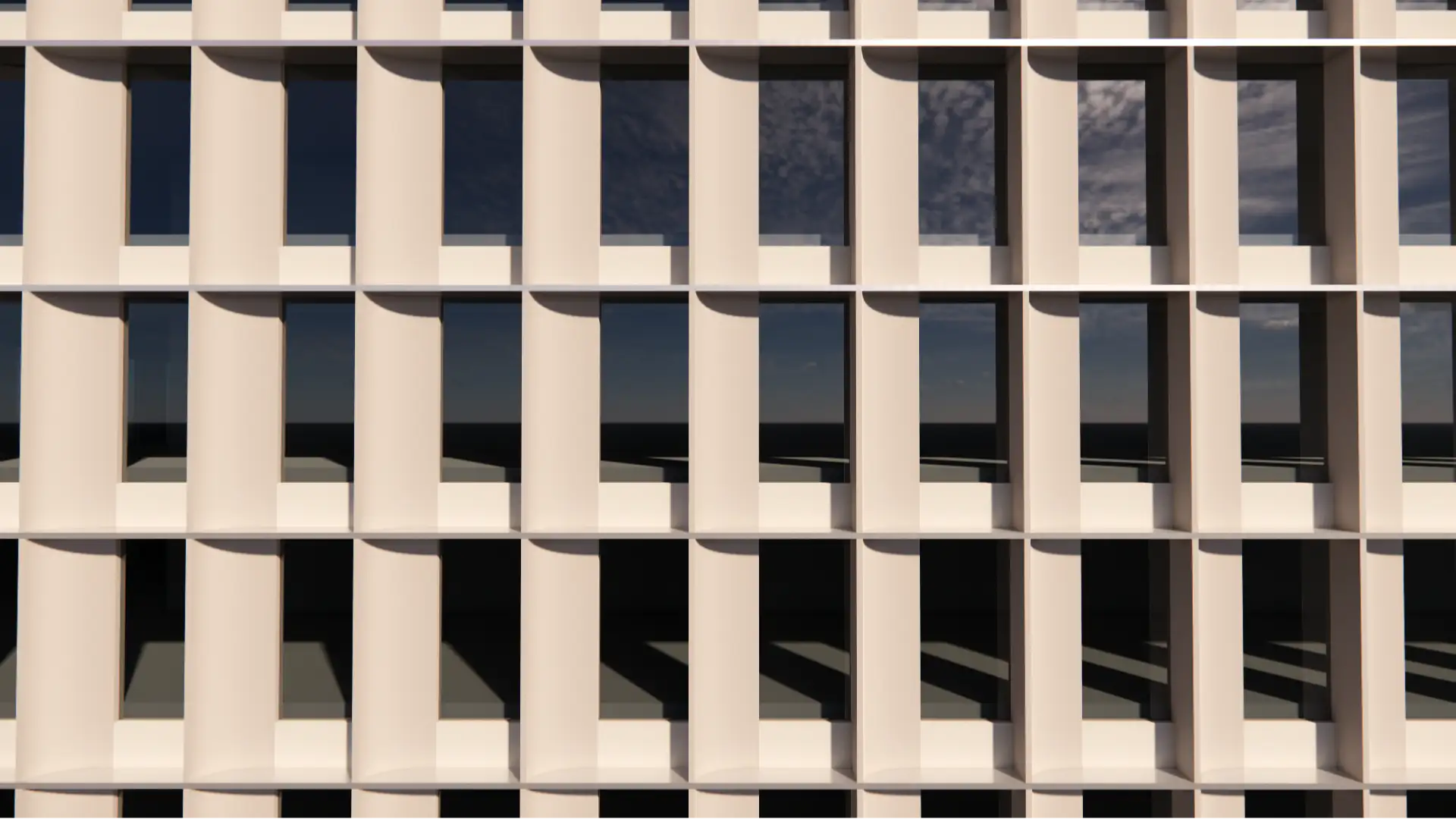

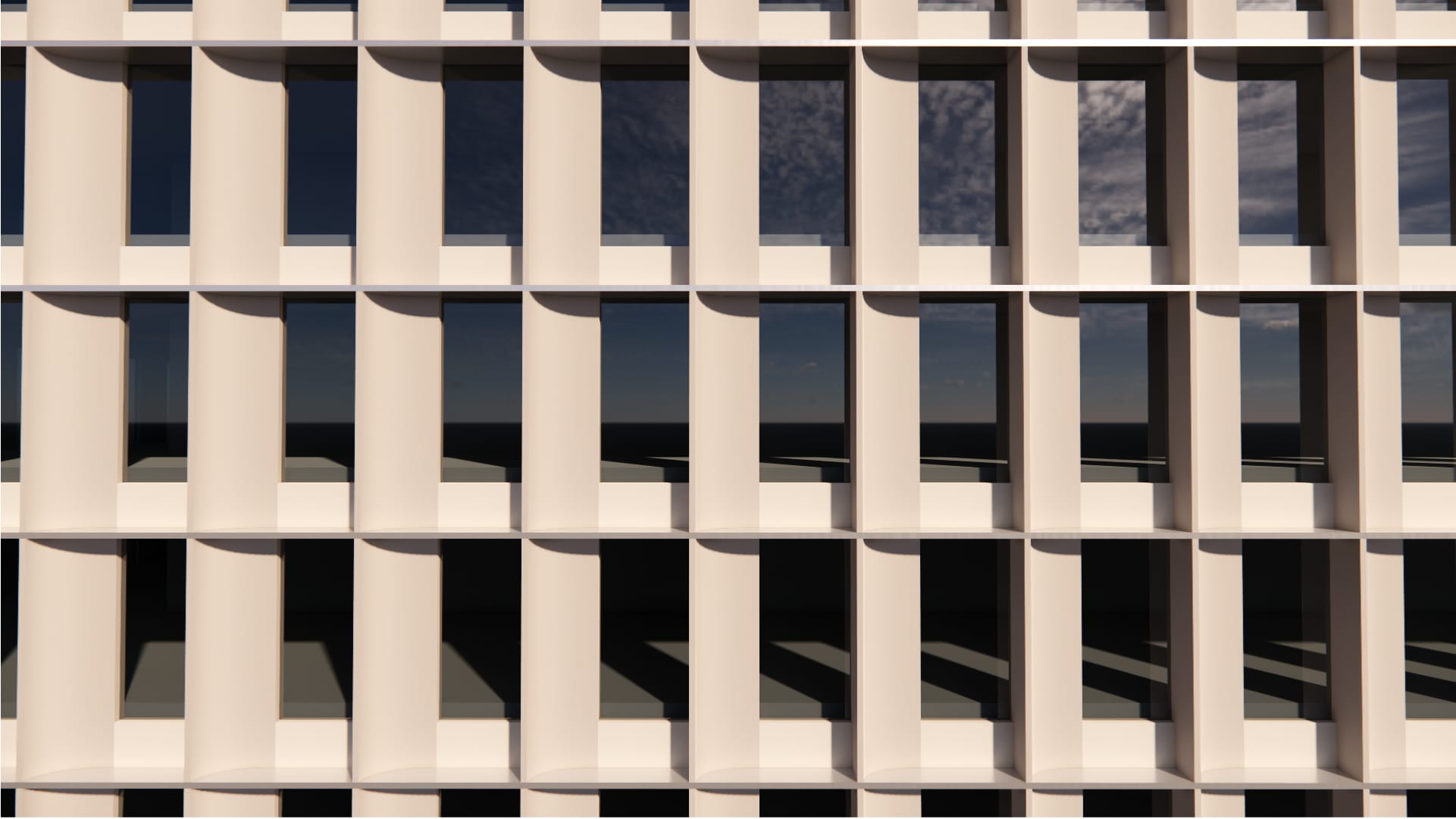

Main Facade View
Directional Waves
Curved Panel Grid
A single-skin facade system defined by an orthogonal grid of uniform, curved metal panels. The prominent curved panels provide passive shading and allow the envelope to maintain a low window-to-wall ratio (<40%).

Tags:

Single-Skin
Orthogonal Grid
3D/Sculpted Panels
Balanced
Metal
Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8
