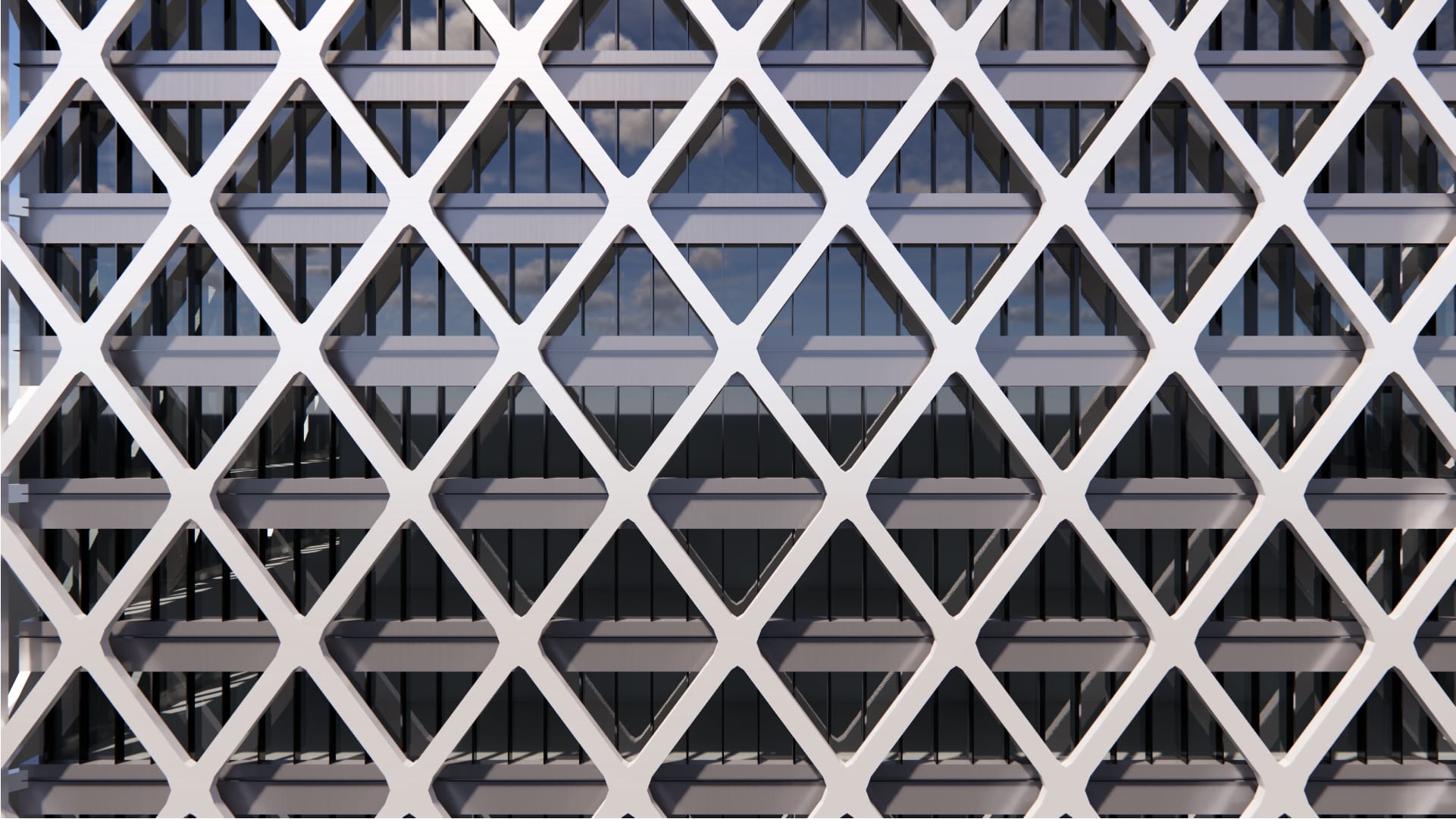

Main Facade View

Exoskeleton Diagrid

Parametric facade framework for Rhino + Grasshopper

Exoskeleton Diagrid Screen
An exterior screen system defined by structural elements arranged in a diagrid configuration.

Tags:

Screen
Diagrid
Sticks/Filigree
Balanced
Metal

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Facet for Rhino

8
Download .GH Framework
Try free in Rhino

14-day free trial · installs via Rhino’s Package Manager.
