Fluted Channels

Randomized Fluted Screen

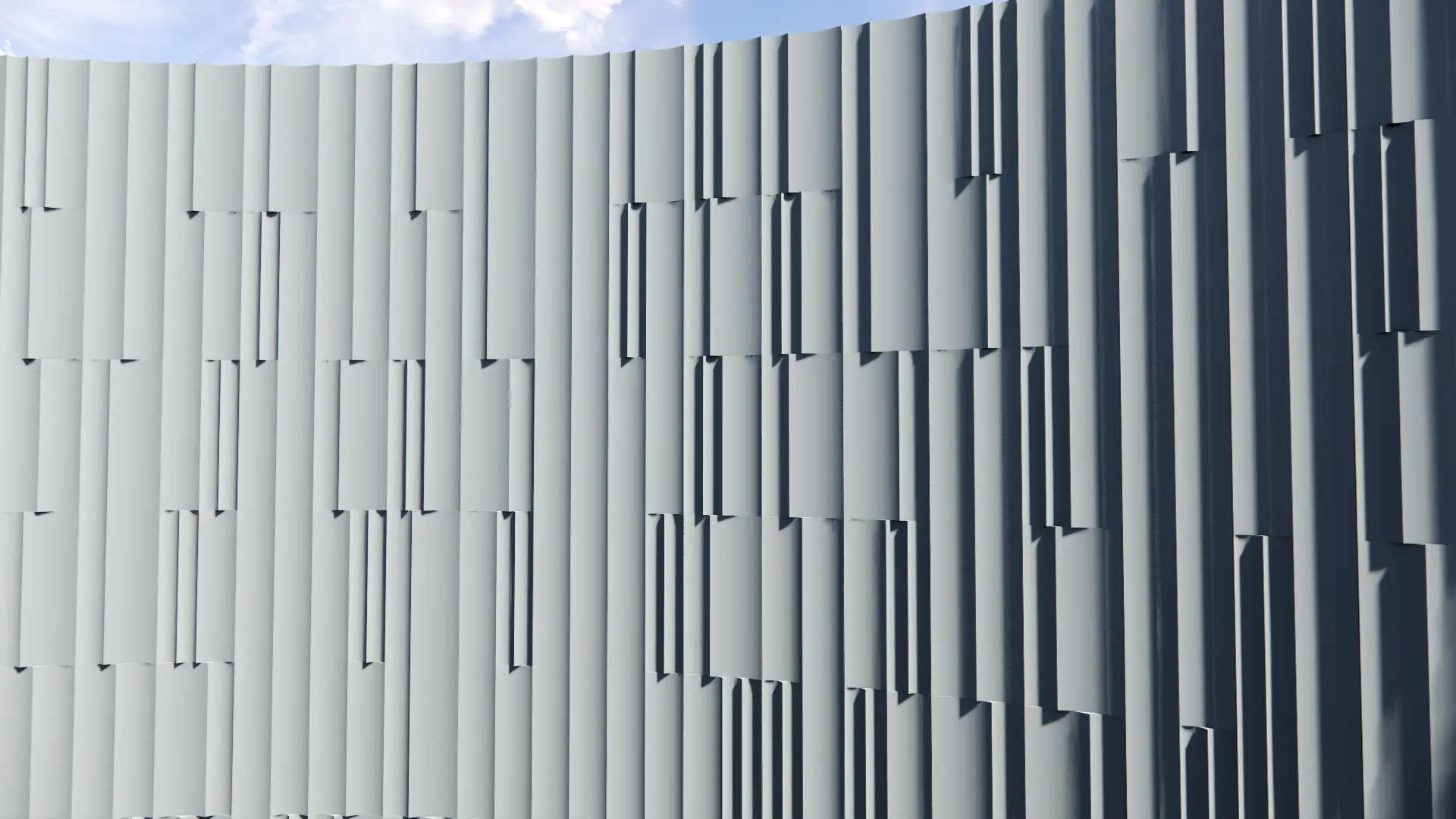

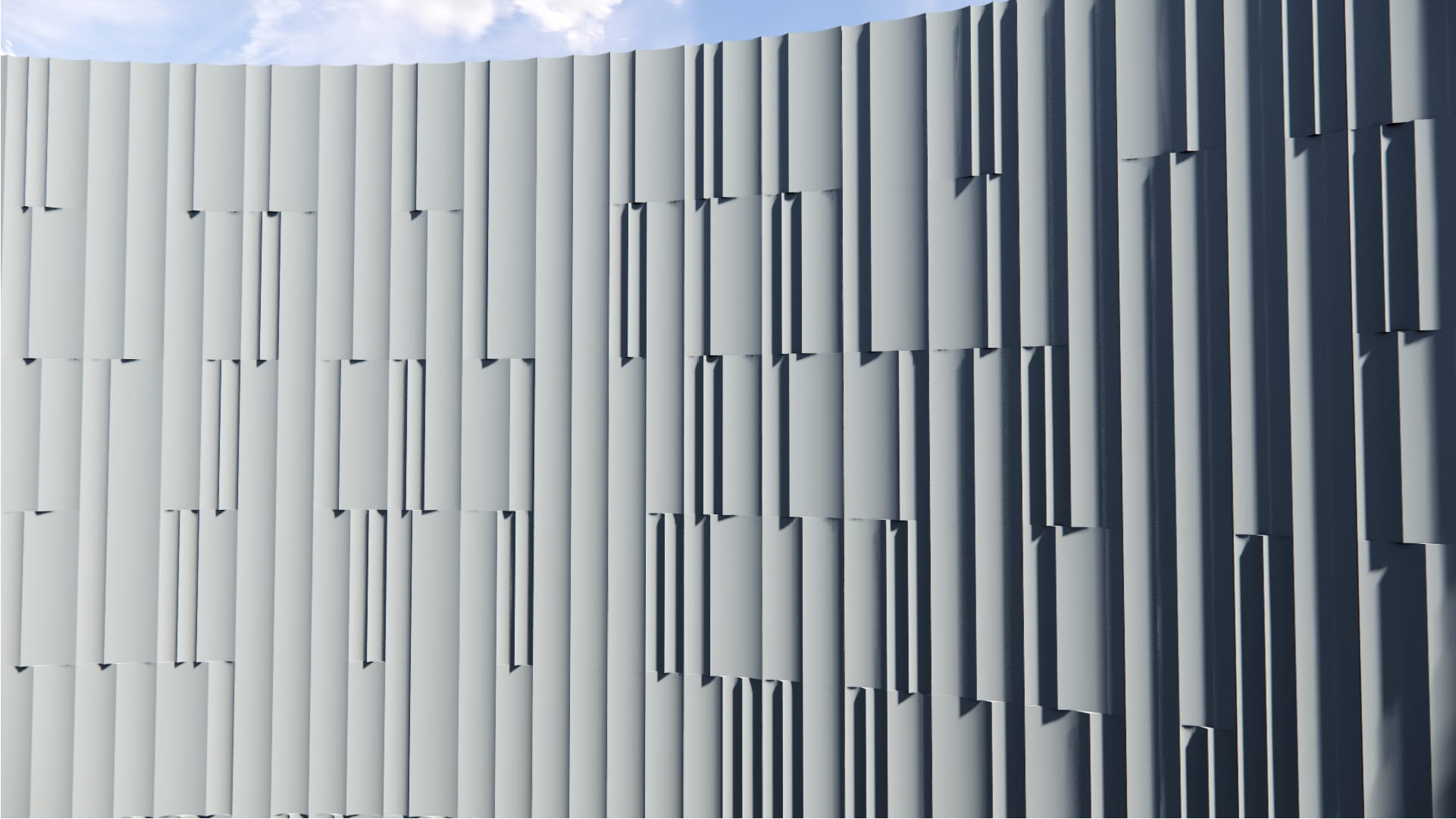

A closed facade system defined by fluted, concave panels. Using a randomized logic, the framework distributes vertical fluted elements of various width to create a vertical, textured exterior.

Tags:

Closed

Irregular

3D/Sculpted Panels

Vertical

Metal, Concrete

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
