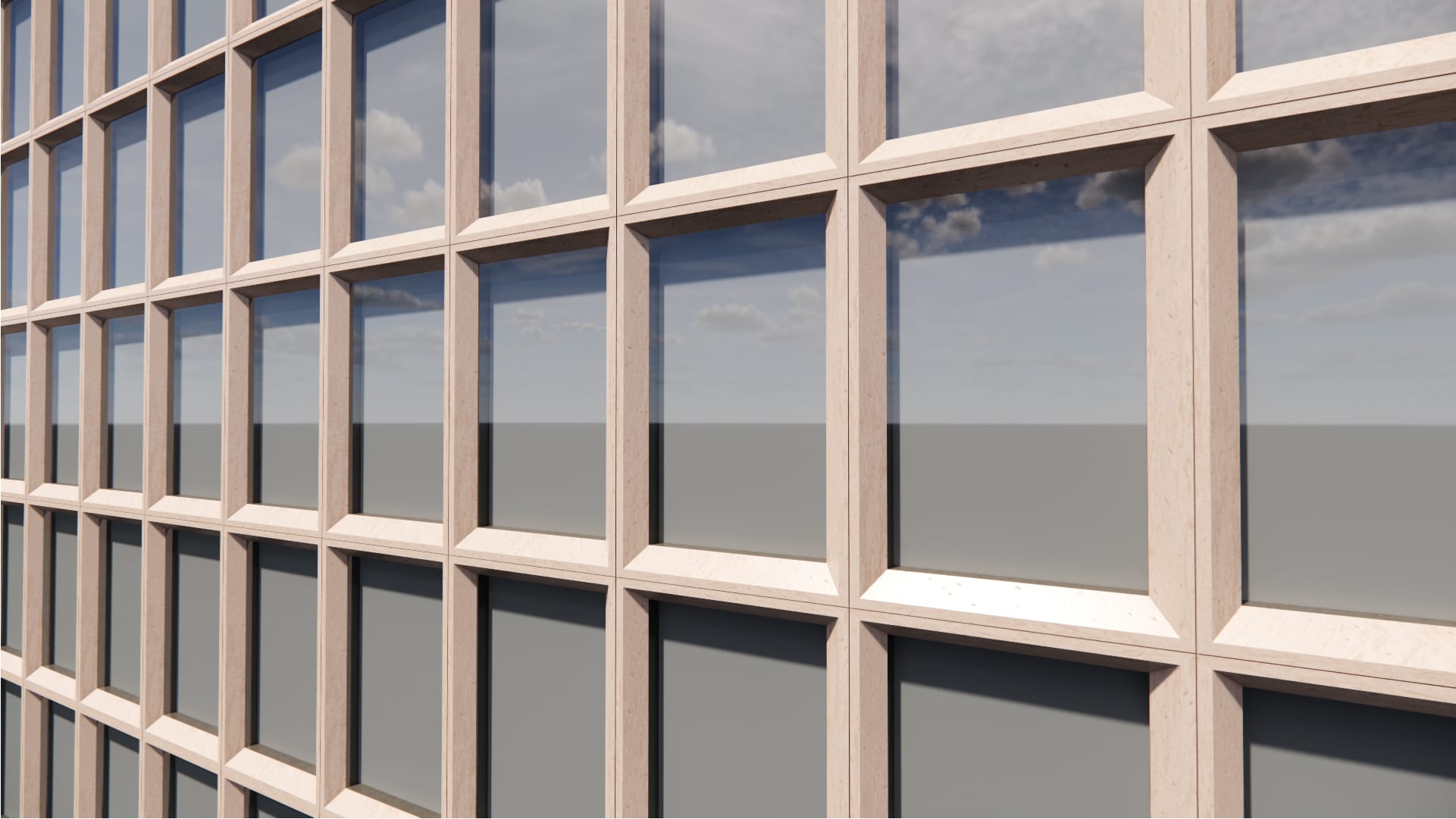

Main Facade View

Framed Grid

Parametric facade framework for Rhino + Grasshopper

Orthogonal Inset Grid
A single-skin facade system defined by a regular, orthogonal grid of frames. The interior edges of each frame are intentionally tilted, adding pronounced depth and a sculptural quality.

Tags:

Single-Skin
Orthogonal Grid
Frames/Cassettes
Balanced
Concrete

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Facet for Rhino

8

14-day free trial · installs via Rhino’s Package Manager.
