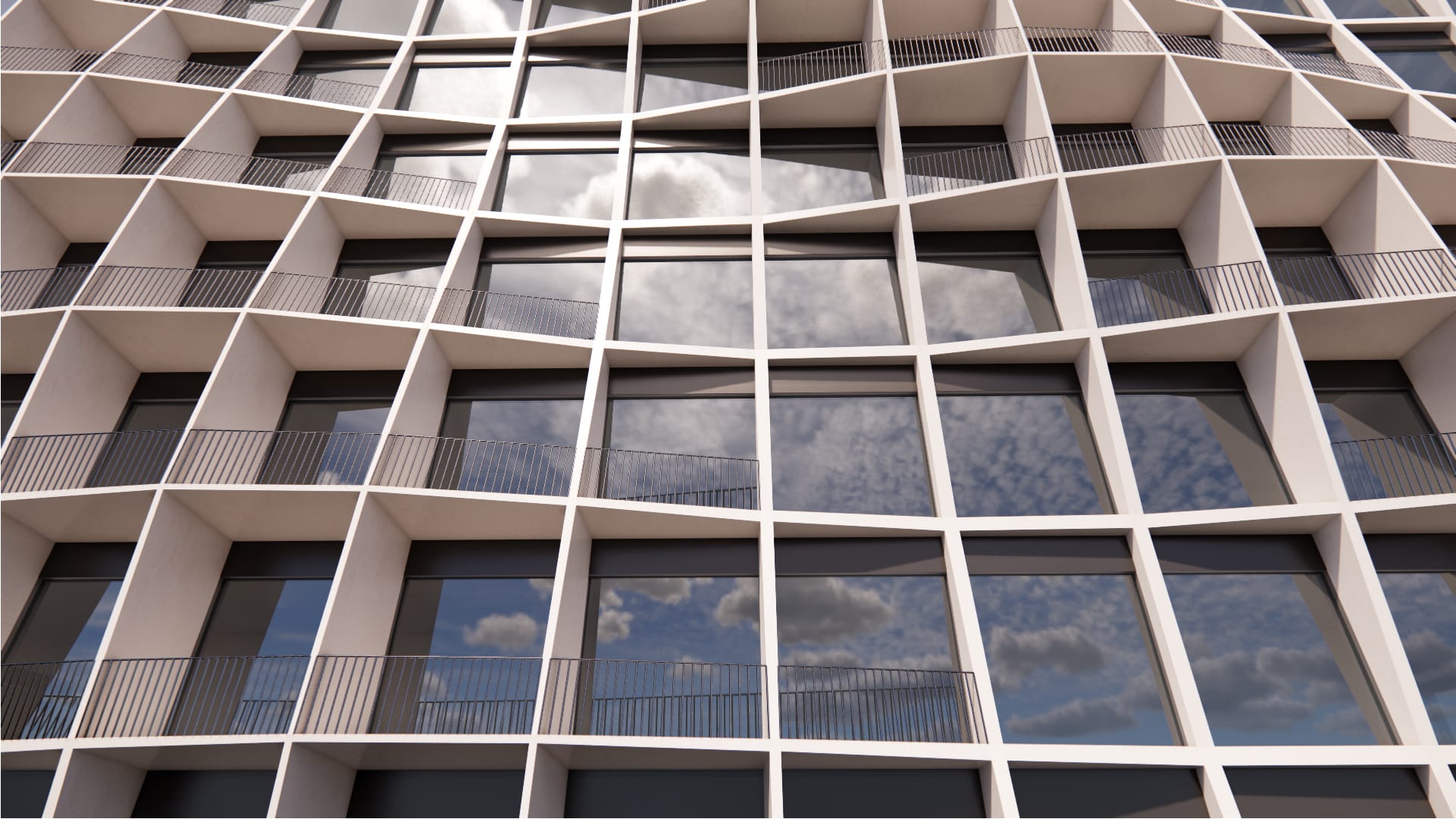

Main Facade View
Grid Waves
Undulating Deep Frames
A facade system defined by an orthogonal grid of deep frames. The frame depth varies following an undulating geometry that introduces dynamic movement across the building envelope. The projecting elements provide effective passive shading.

Tags:

Single-Skin
Orthogonal Grid
3D/Sculpted Panels
Balanced
Concrete
Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8
Download .GH Framework
Subscribe to Download

Already a member? Log in to download

Request Early Access

Already a member? Log in to download

Setup instructions:

  1. Download the .GH Framework script.

  2. Open Rhino, launch Grasshopper, and open the script.

  3. Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
