Interlocked Panels

Interlocking Tilted Panels

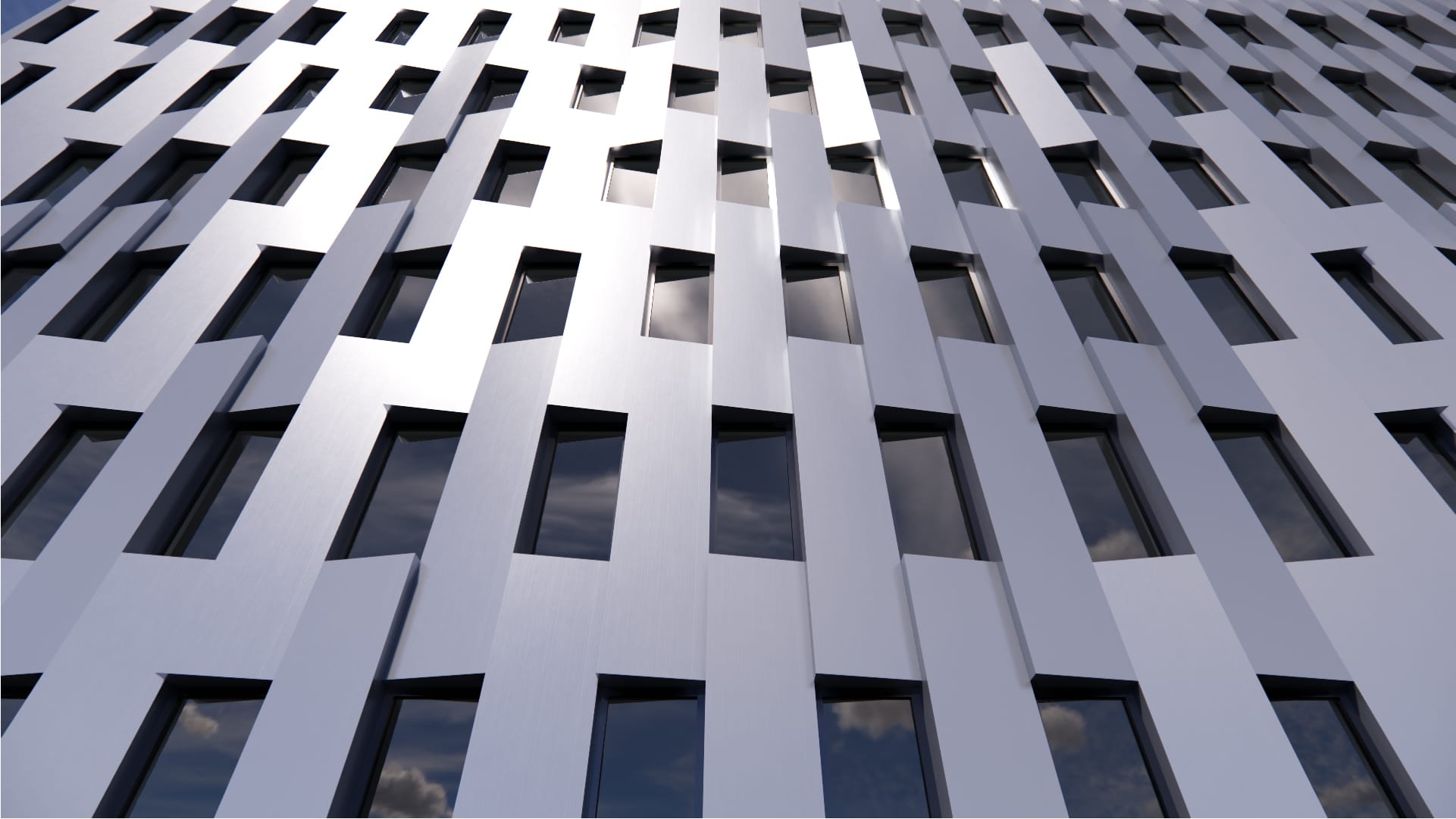

A single-skin facade system defined by angled, interlocking panels. The interlocking creates a chain mail or weaving effect. The angled geometry adds depth to the building envelope while acting as partial passive shading. The angled panels can be used for building-integrated-photovoltaics (BIPV).

Tags:

Single-Skin

Staggered / Checkerboard

3D/Sculpted Panels

Vertical

Metal

Low WWR Capable (< 40%), Passive Shading, BIPV Ready

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
