Interlocked Screen

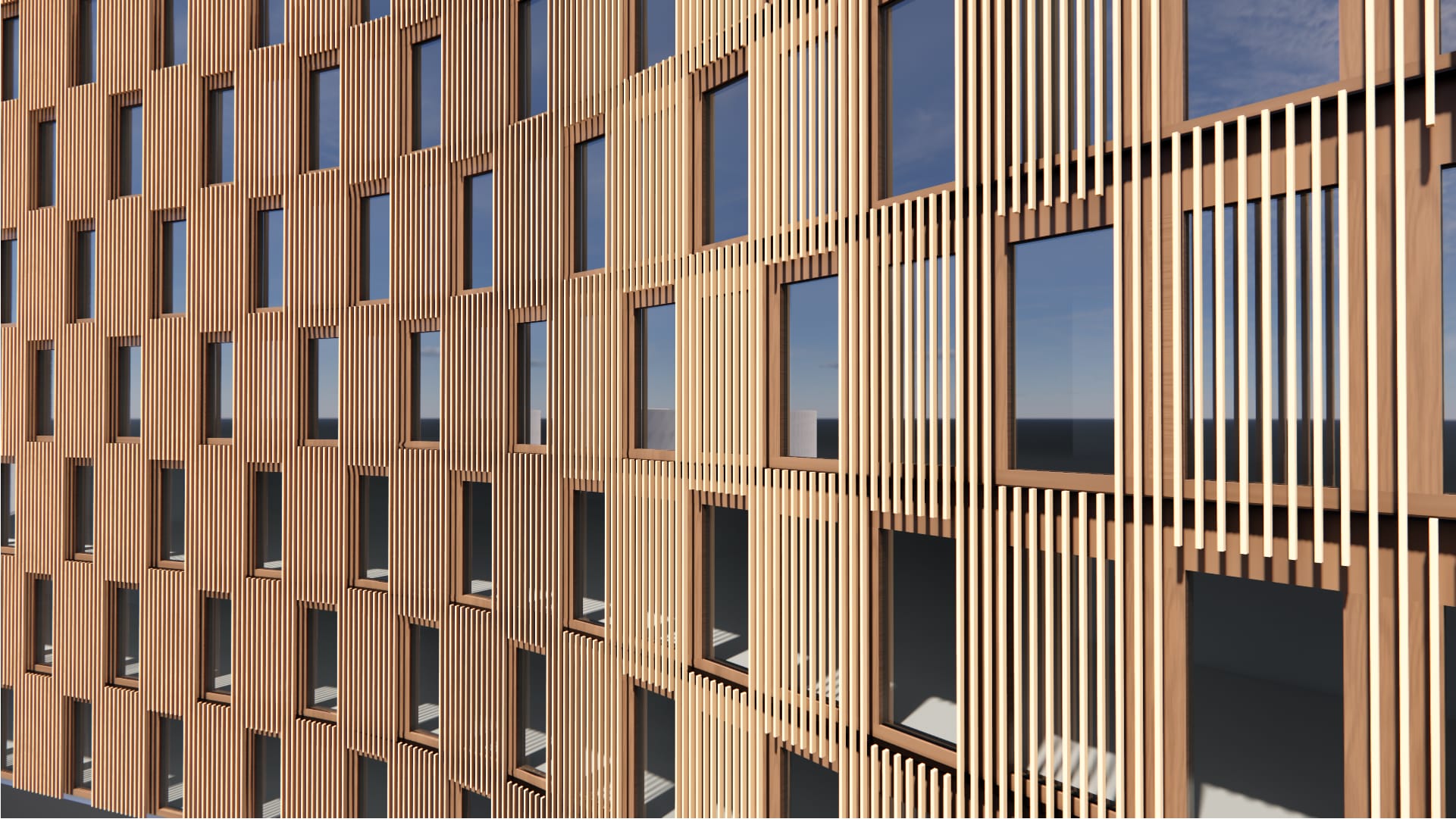

Timber Screen with Staggered Openings

An exterior screen system defined by linear timber elements. The staggered opening layout adds dynamism and texture to the exterior. The timber elements create passive shading for the primary facade.

Tags:

Screen

Staggered / Checkerboard

Sticks/Filigree

Balanced

Timber

Low WWR Capable (< 40%), Passive Shading, Design for Disassembly

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
