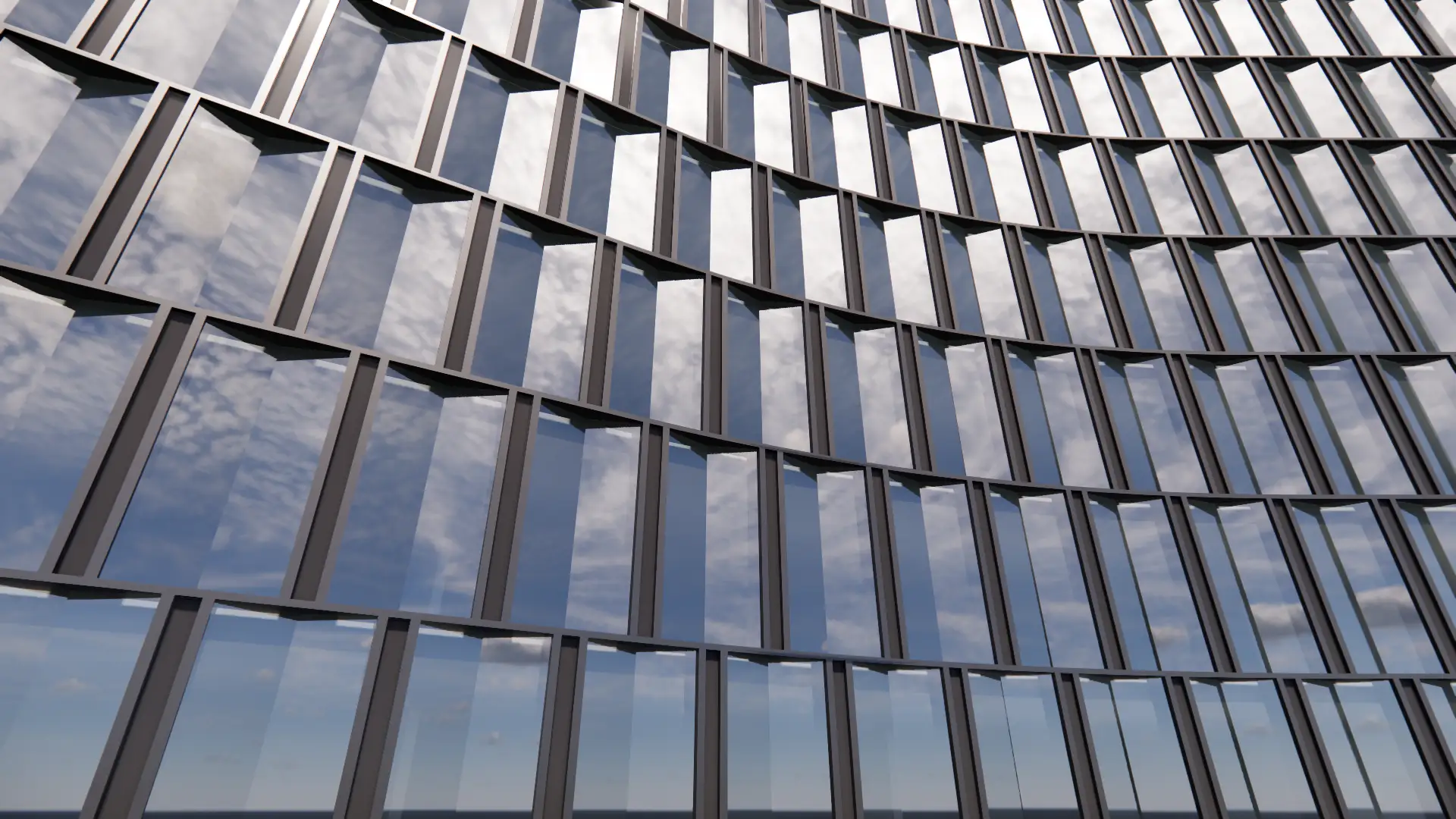

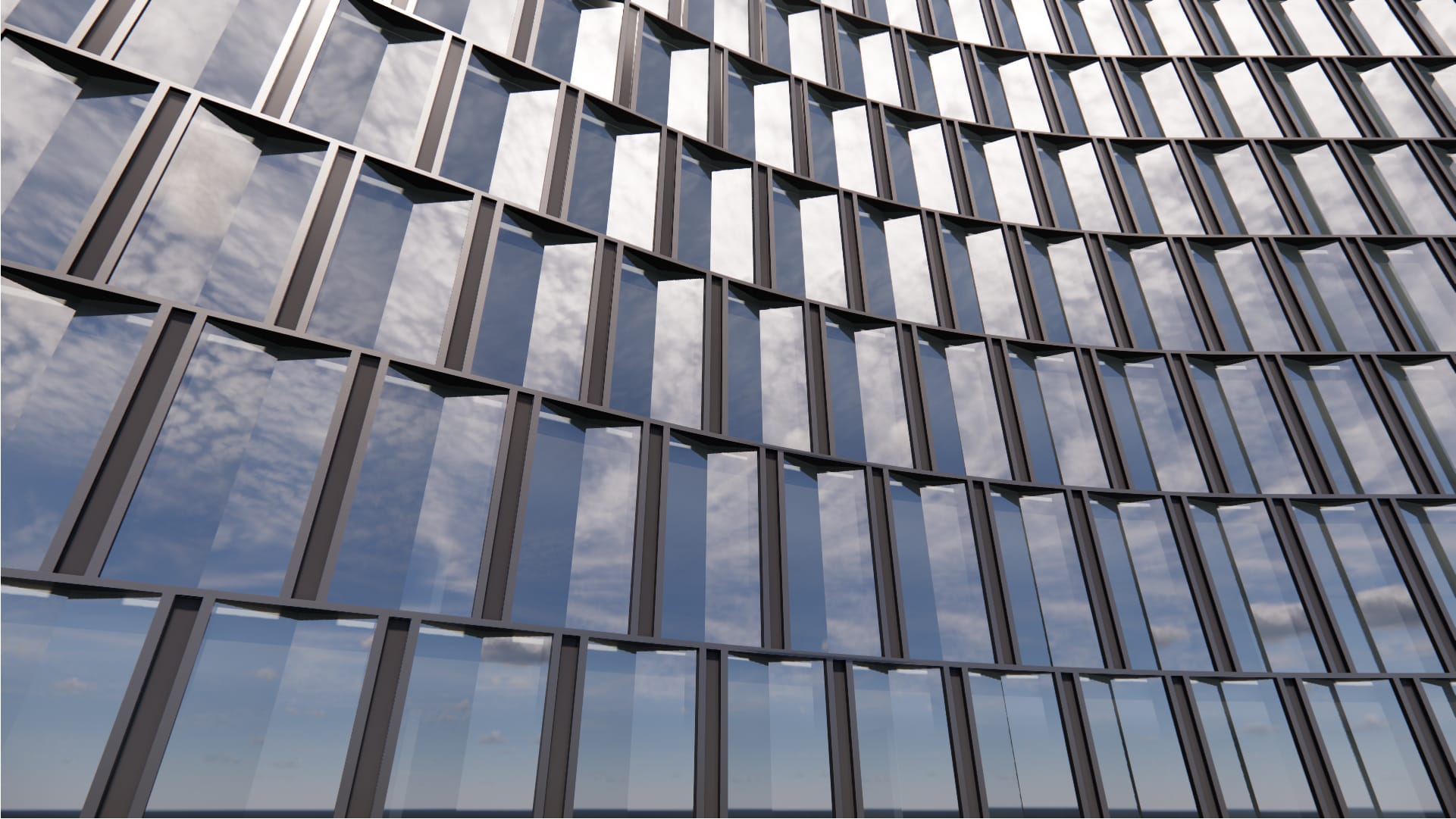

Main Facade View

Interlocked Tiles

Parametric facade framework for Rhino + Grasshopper

Staggered Folded Frames
A single-skin facade defined by framed cassettes arranged in a staggered configuration. The staggered layout and the tilted glazing add texture to the envelope. The thin elements between the glazing can be used for ventilation. One side of the two folded glass surfaces could be used as BIPV.

Tags:

Single-Skin
Staggered / Checkerboard
Frames/Cassettes
Balanced
Metal
BIPV Ready

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Facet for Rhino

8

14-day free trial · installs via Rhino’s Package Manager.
