Layer Strips

Horizontal Ribbon Window

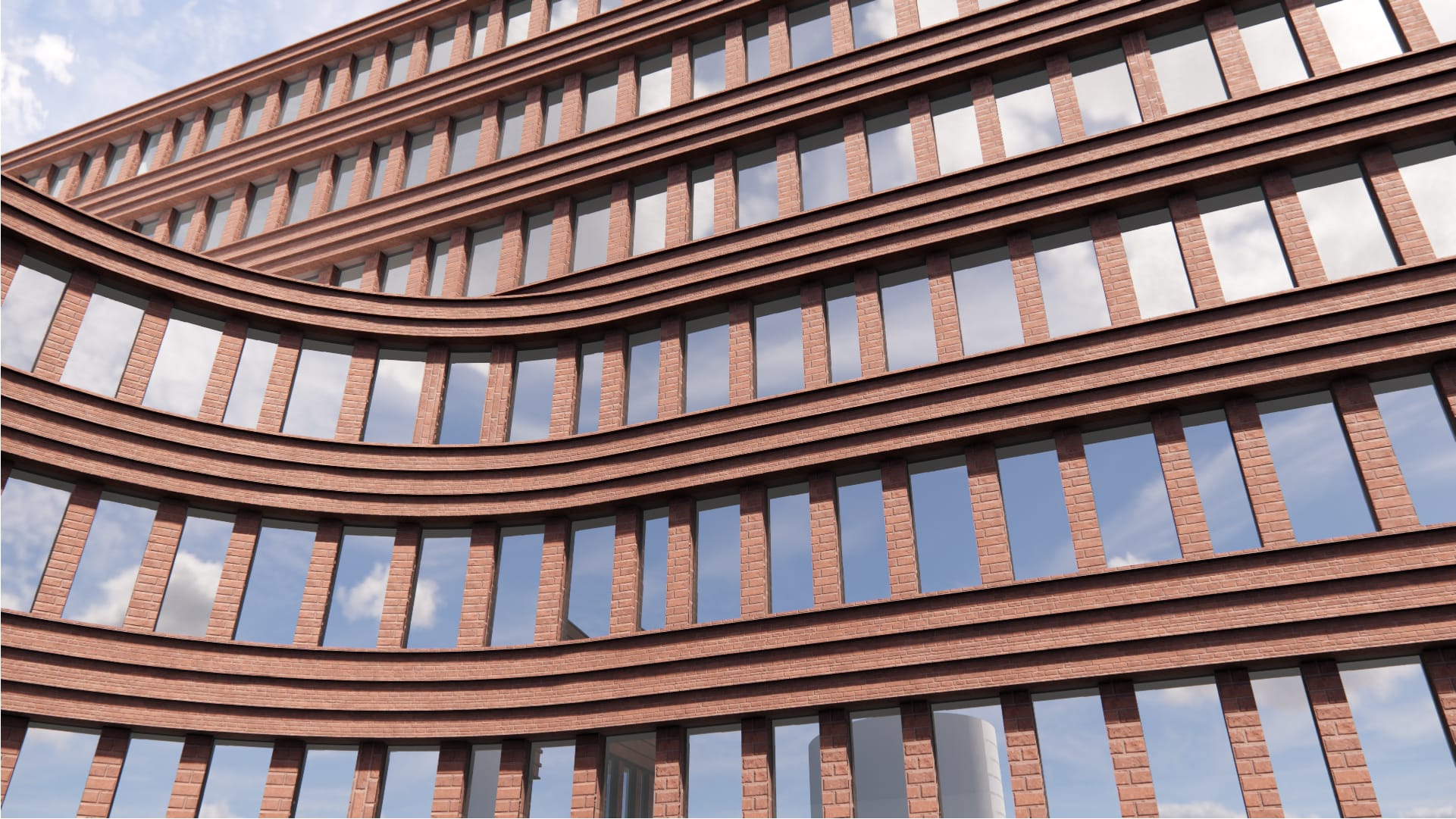

A facade system defined by sweeping horizontal bands. The framework strongly emphasizes horizontal directionality. The vertical elements within the glazed portion follow a randomized spacing. The result is a facade with a low window-to-wall radio (<40%).

Tags:

Single-Skin

Irregular

Bands / Ribbons

Horizontal

Metal, Terracotta

Low WWR Capable (< 40%)

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
