Layered Grid

Grid with Angled Panel

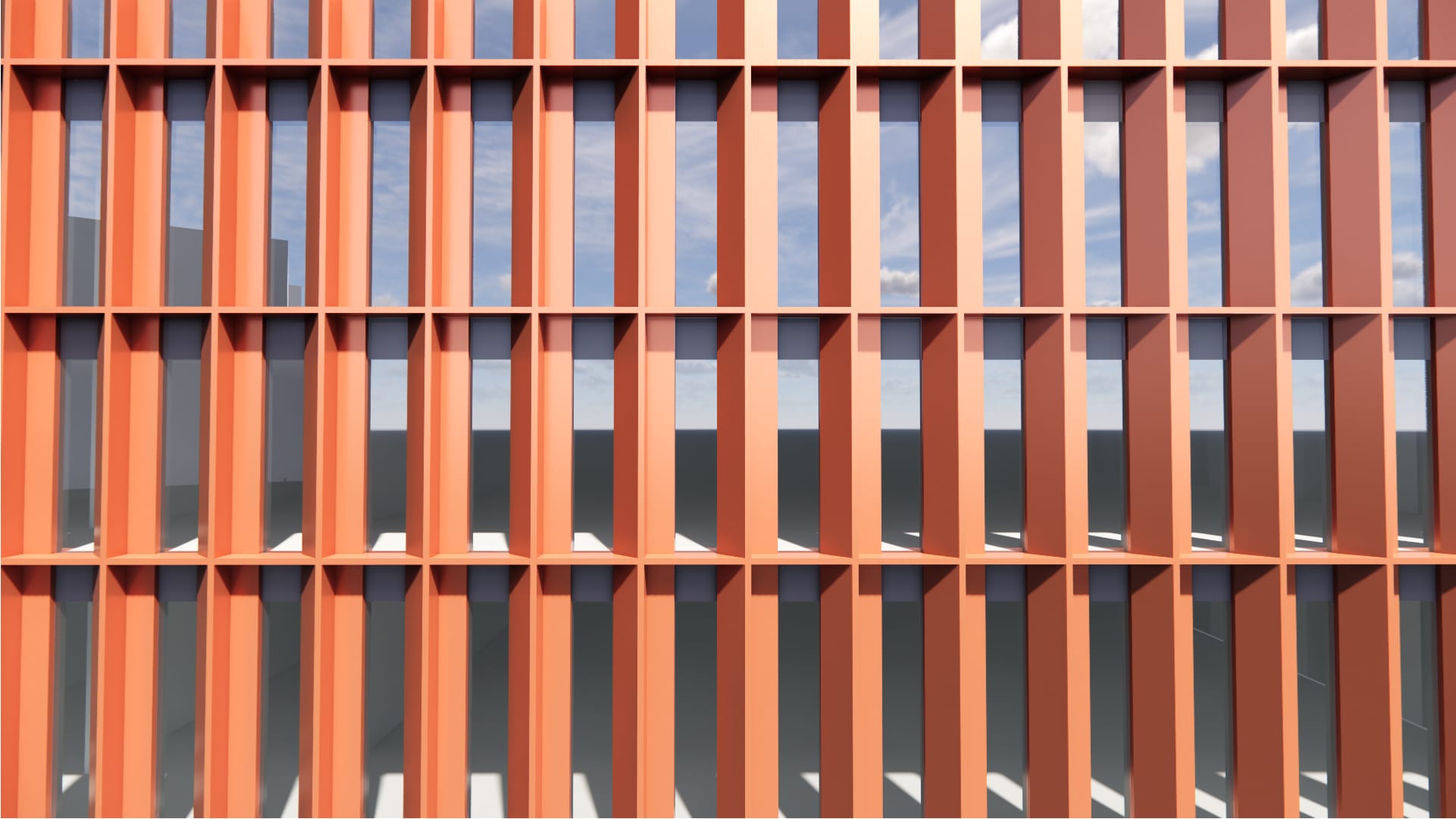

A single-skin facade system defined by an orthogonal grid of uniform frames. One side of the frame is tilted, adding depth and allowing for building-integrated-photovoltaics (BIPV). The deep frames offer effective passive shading for the narrow glazed elements. The wide panels lead to a low window-to-wall-ratio (<40%).

Tags:

Single-Skin

Orthogonal Grid

Frames/Cassettes

Vertical

Metal

Low WWR Capable (< 40%), Passive Shading, BIPV Ready

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
