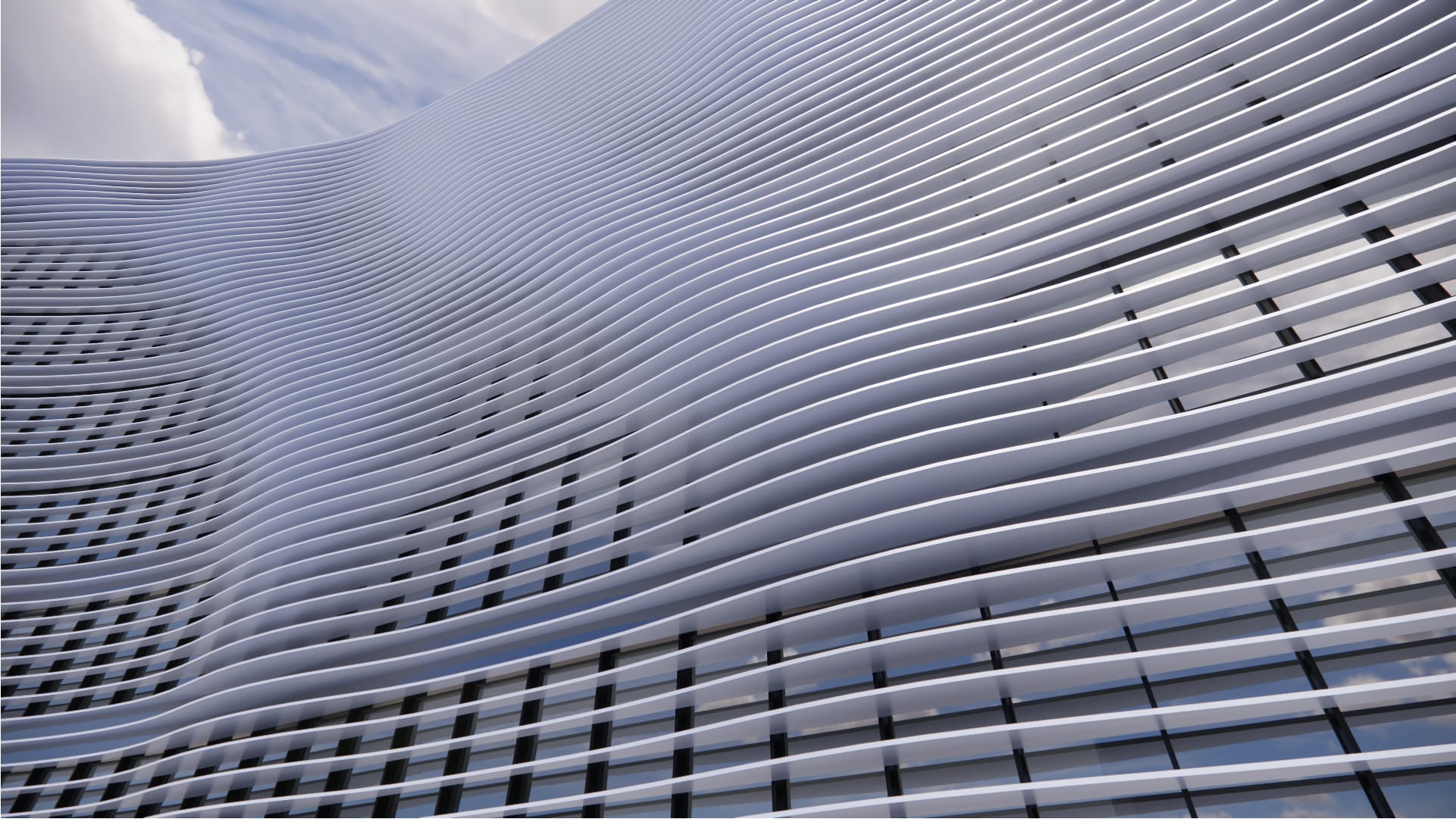

Main Facade View
Louver Wave
Undulating Horizontal Louver Screen
A continuous screen system defined by sweeping horizontal louvers. The louvers’ depth varies following an undulating, wave-like geometry to create a soft, continuous exterior. The horizontal louvers provide effective passive shading against high-angle sun.

Tags:

Screen
Skin/ Wrapping / Monolithic, Fluid / Curvilinear
Louvers
Horizontal
Metal
Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8
Download .GH Framework
Subscribe to Download

Already a member? Log in to download

Request Early Access

Already a member? Log in to download

Setup instructions:

  1. Download the .GH Framework script.

  2. Open Rhino, launch Grasshopper, and open the script.

  3. Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
