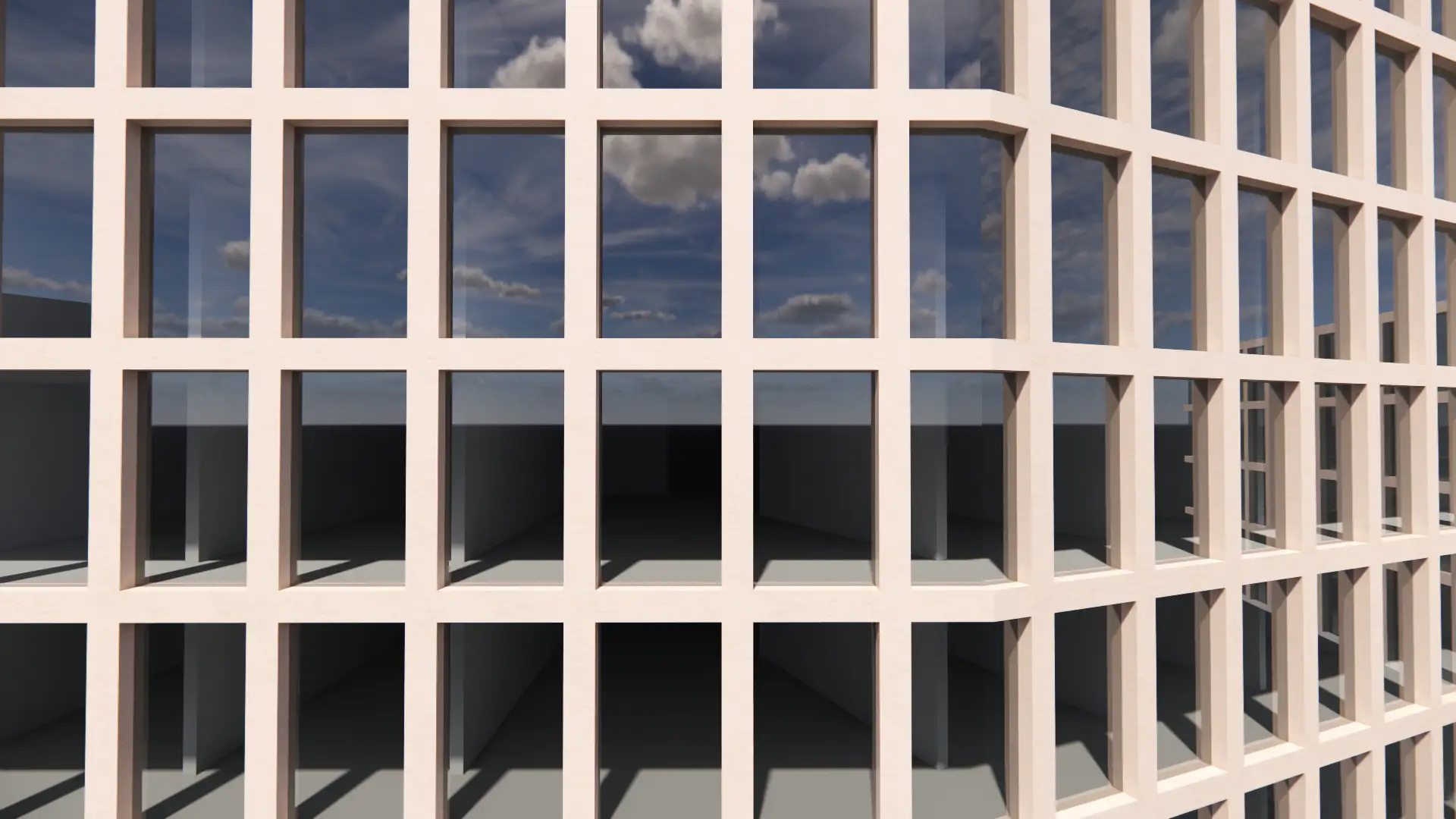

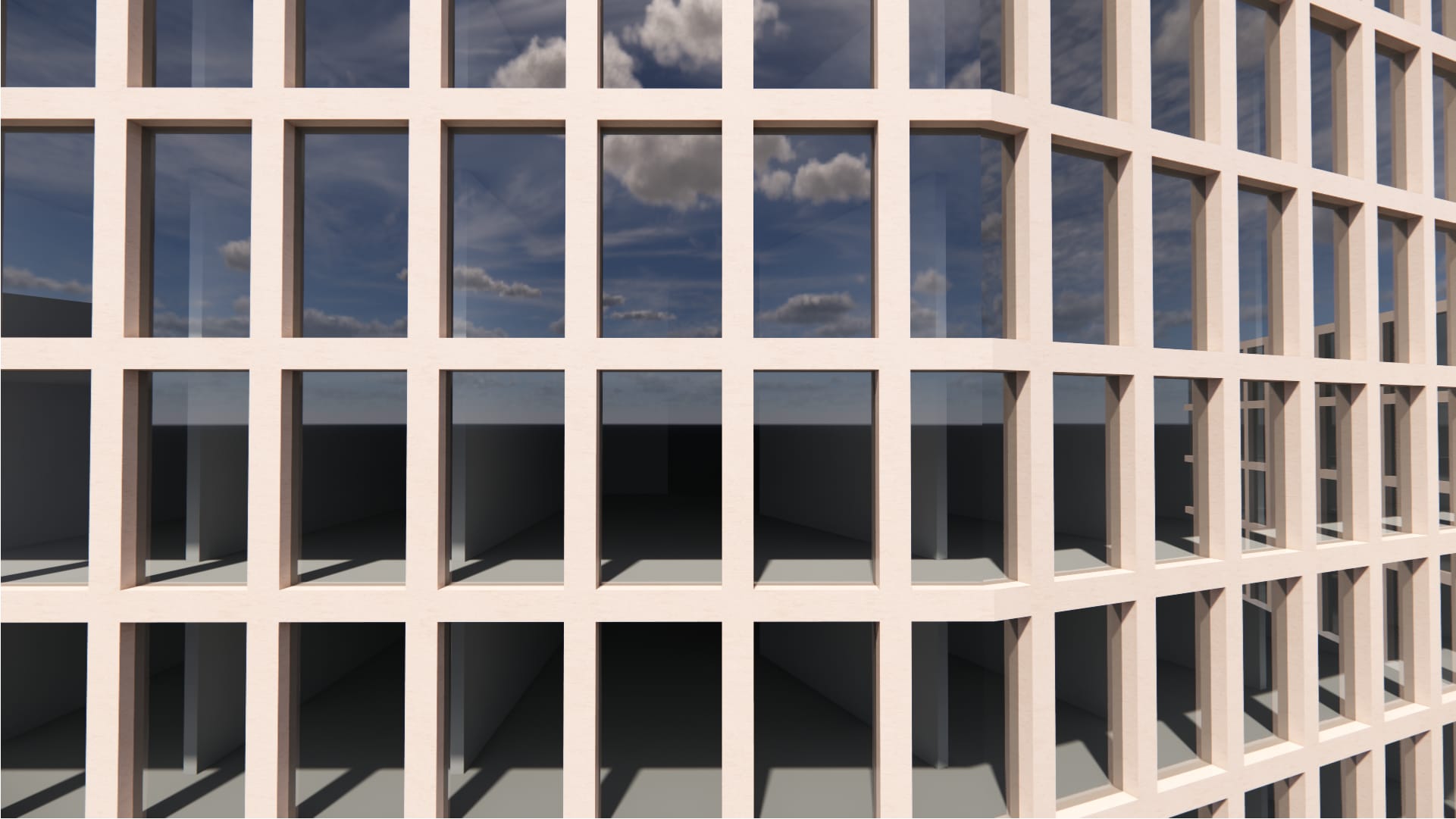

Main Facade View
Modular Grid
Orthogonal Grid
A single-skin facade system defined by a regular, orthogonal grid of massive horizontal and vertical elements.

Tags:

Single-Skin
Orthogonal Grid
Frames/Cassettes
Balanced
Metal, Concrete

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8
Download .GH Framework
Subscribe to Download

Already a member? Log in to download

Request Early Access

Already a member? Log in to download

Setup instructions:

  1. Download the .GH Framework script.

  2. Open Rhino, launch Grasshopper, and open the script.

  3. Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
