Orthogonal Double-Skin Lattice

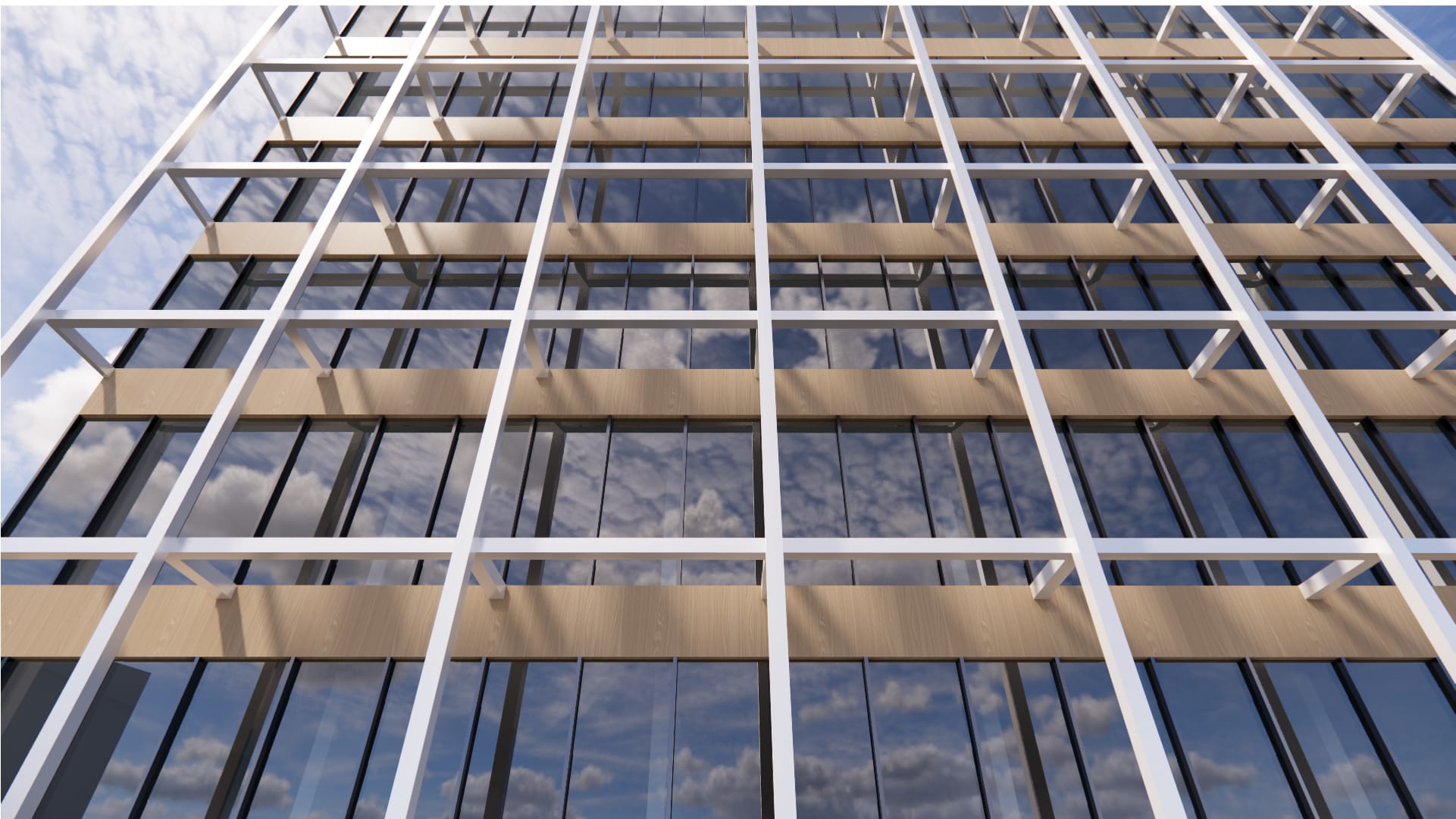

A double-skin facade system defined by an open, orthogonal grid of thin elements. The framework offsets the open lattice from the primary glazing.

Tags:

Double-Skin

Orthogonal Grid

Sticks/Filigree

Balanced

Timber, Metal

Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
