Panel Grain

Randomized Multi-Colored Panel

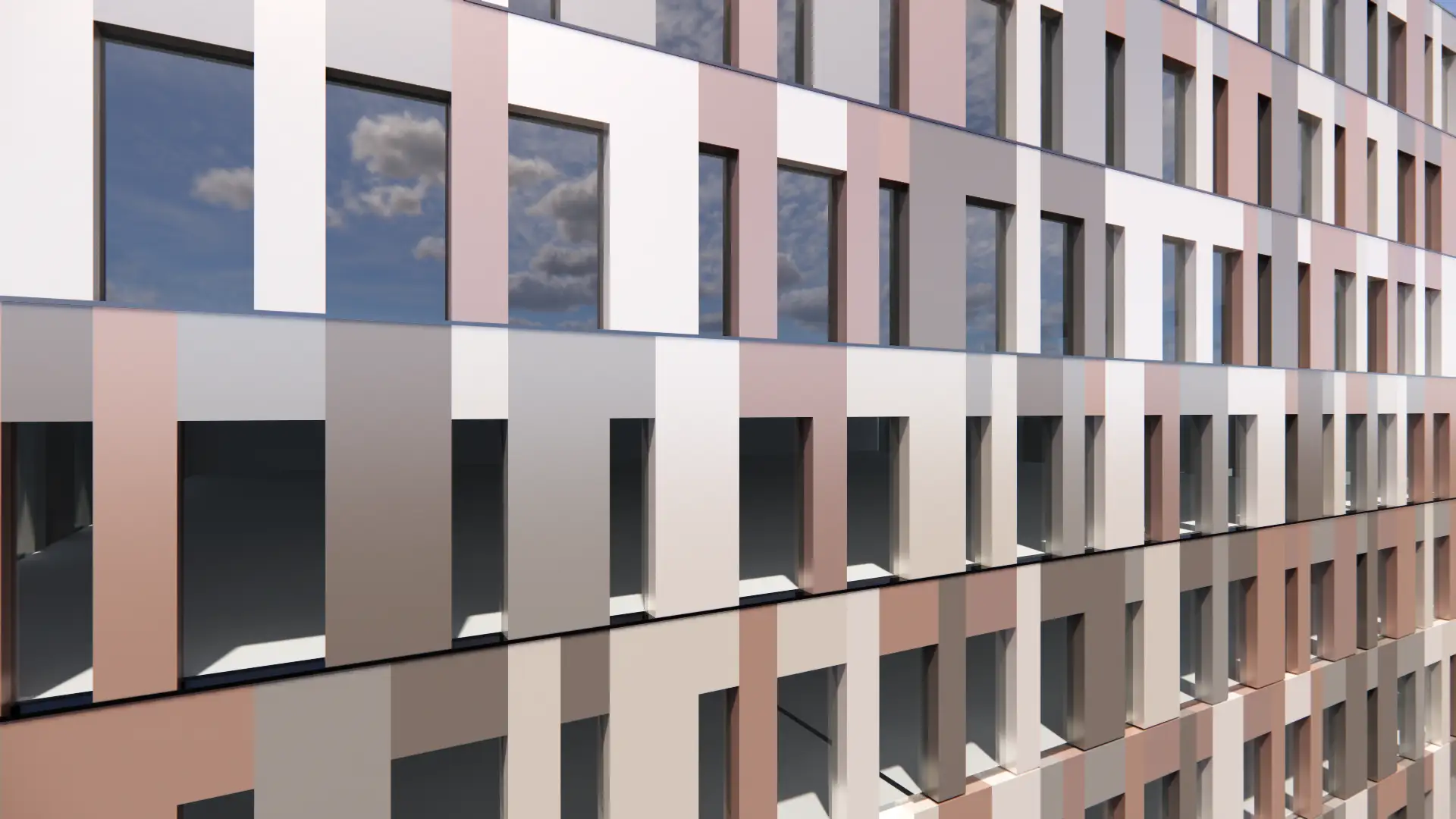

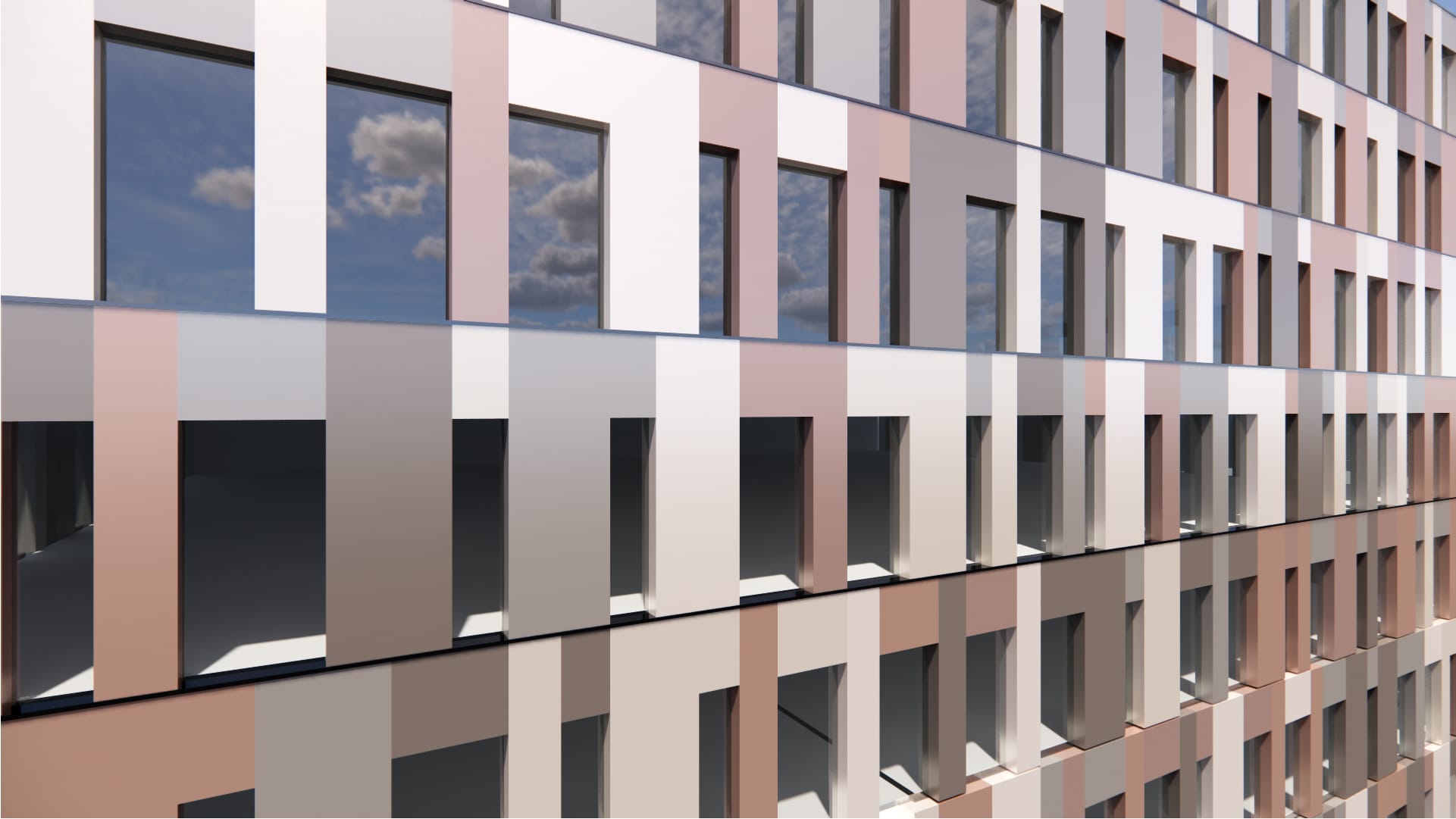

A single-skin facade made of flat metal panels and integrated glazing arranged in a randomized sequence. The interplay of varying panel widths, opening widths, and colors creates a rich graphic texture. The result is a facade with a low window-to-wall ratio and BIPV potential.

Tags:

Single-Skin

Irregular

Flat Panels

Balanced

Metal

Low WWR Capable (< 40%), BIPV Ready

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
