Pinched Corners

Sequenced Tapered Grid

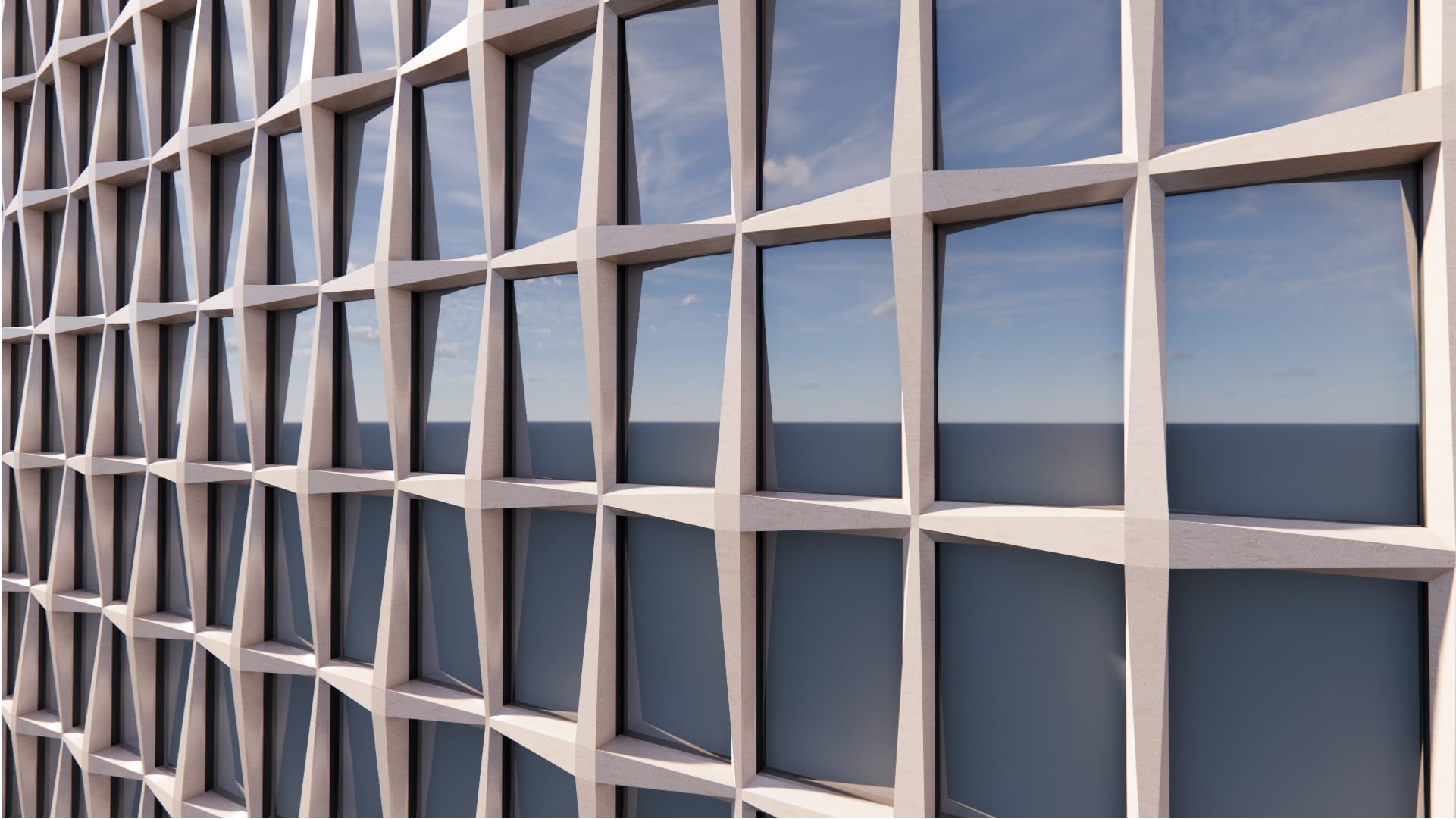

A single-skin facade made of tapered concrete frames. The horizontal and vertical elements alternate in width and depth, adding depth and texture to the facade.

Tags:

Single-Skin

Orthogonal Grid

Frames/Cassettes

Balanced

Metal, Concrete

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
