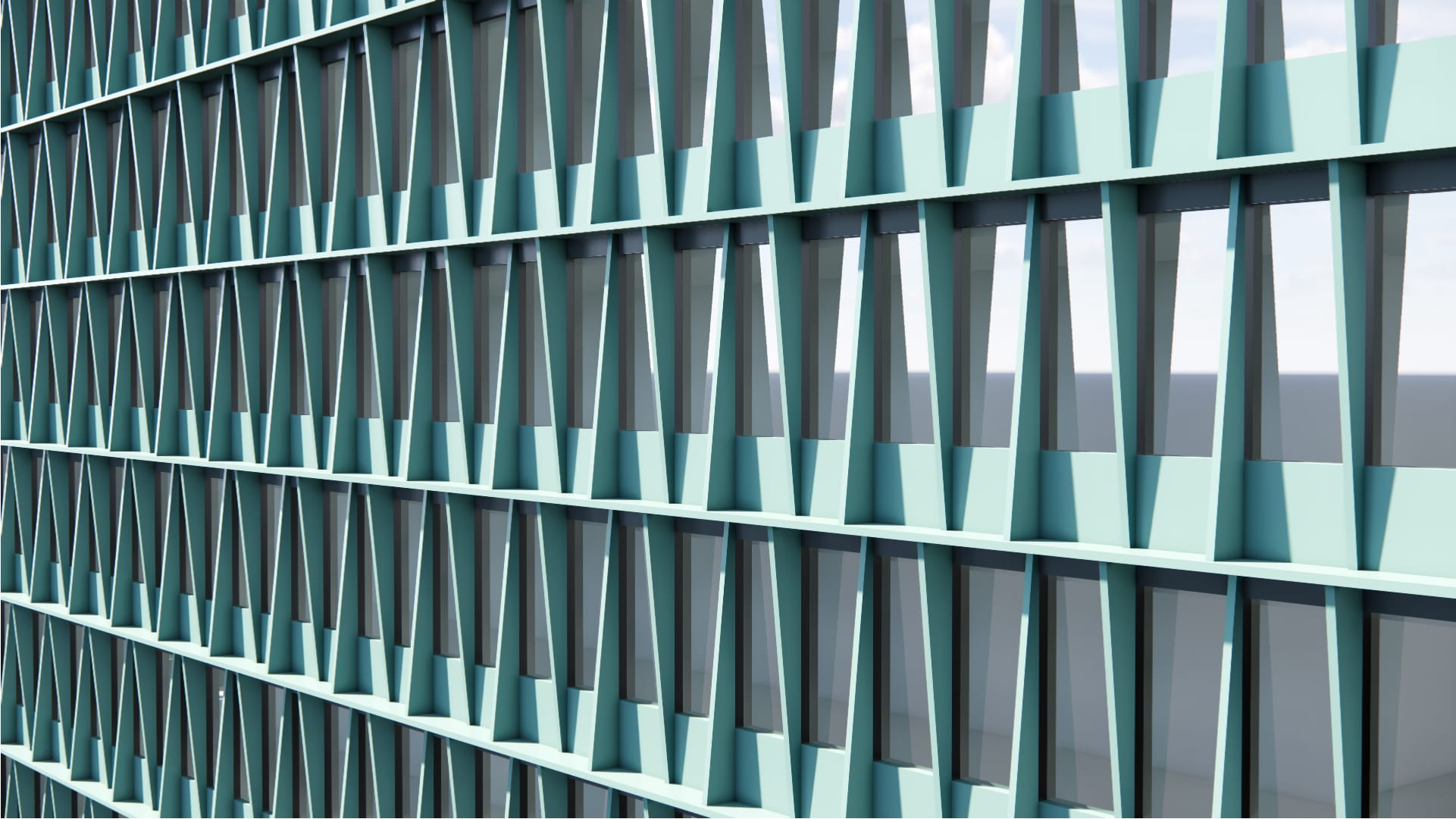

Main Facade View
Pine Fins
Alternating Tilted Fins
A facade based on an orthogonal grid with equally spaced fins. The deep, triangular, vertical elements alternate orientation providing building-integrated passive shading and a textured look.

Tags:

Single-Skin
Orthogonal Grid
Fins
Balanced
Metal
Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8
