Profile Louver

Ribbon Windows with Profiled Horizontal

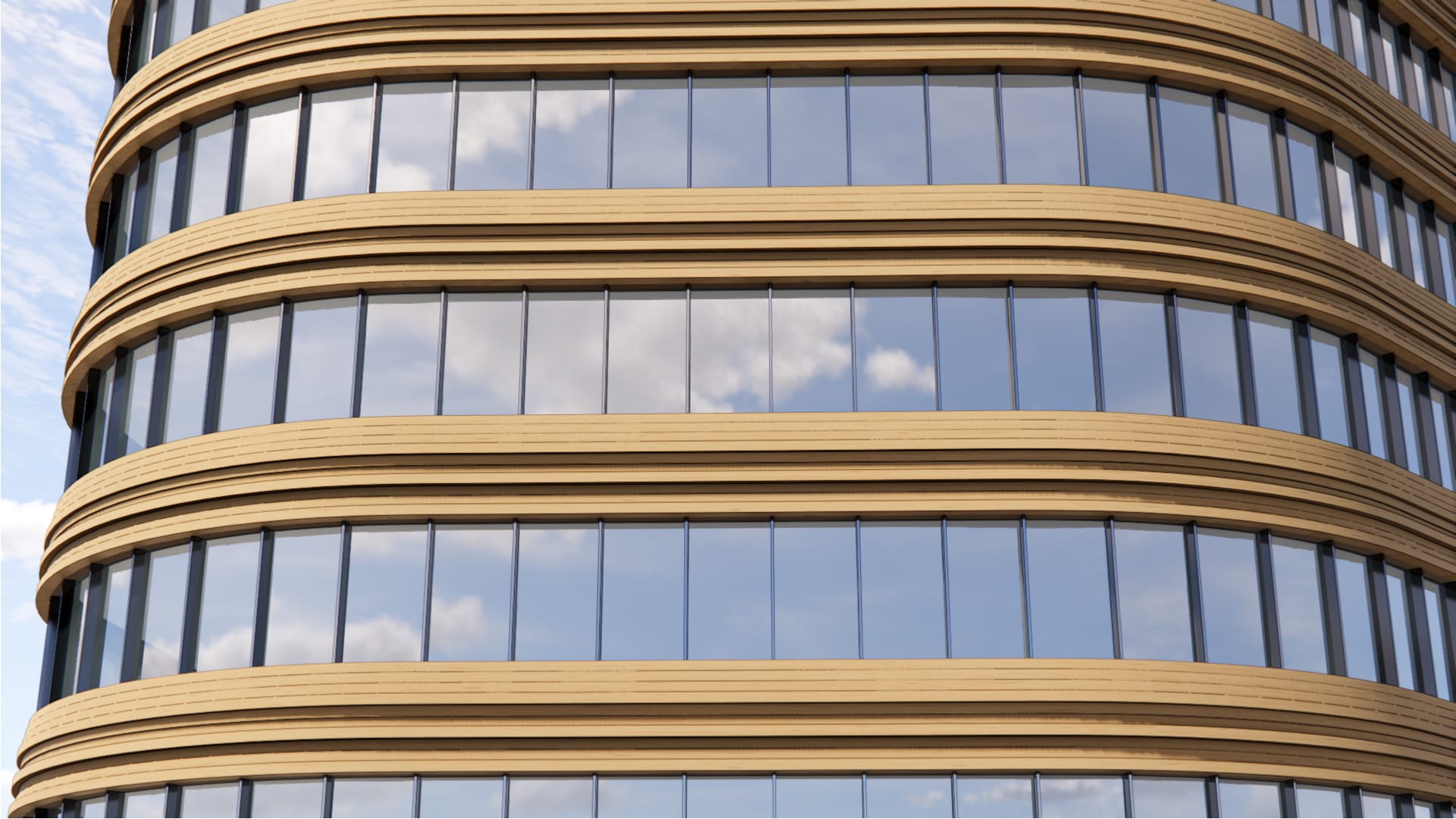

A facade defined by sweeping horizontal bands of uniform, extruded profiles. The framework emphasizes horizontal directionality. The profile can be customized for a unique expression.

Tags:

Single-Skin

Orthogonal Grid

Bands / Ribbons

Horizontal

Metal, Terracotta

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
