Rhythmic Fold

Extended Zig-zag Panels

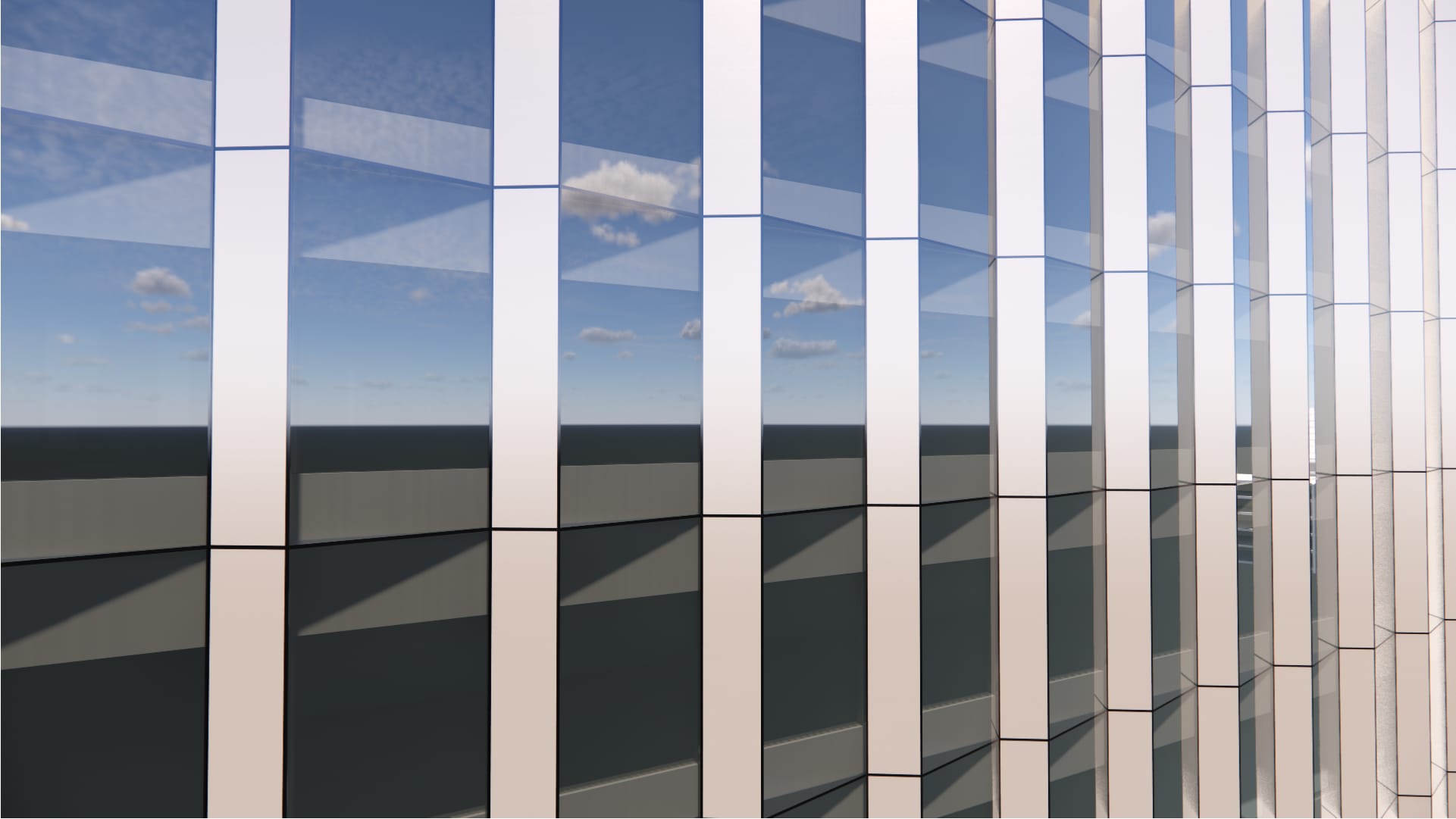

The facade is defined by uniformly spaced folded segments made of a closed panel and glazing. The continuous folded configuration and angular geometry adds rhythm and depth to the surface. The closed, angled panels are ideal candidates for BIPV.

Tags:

Single-Skin

Orthogonal Grid

3D/Sculpted Panels

Vertical

Metal

BIPV Ready, Design for Disassembly

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
