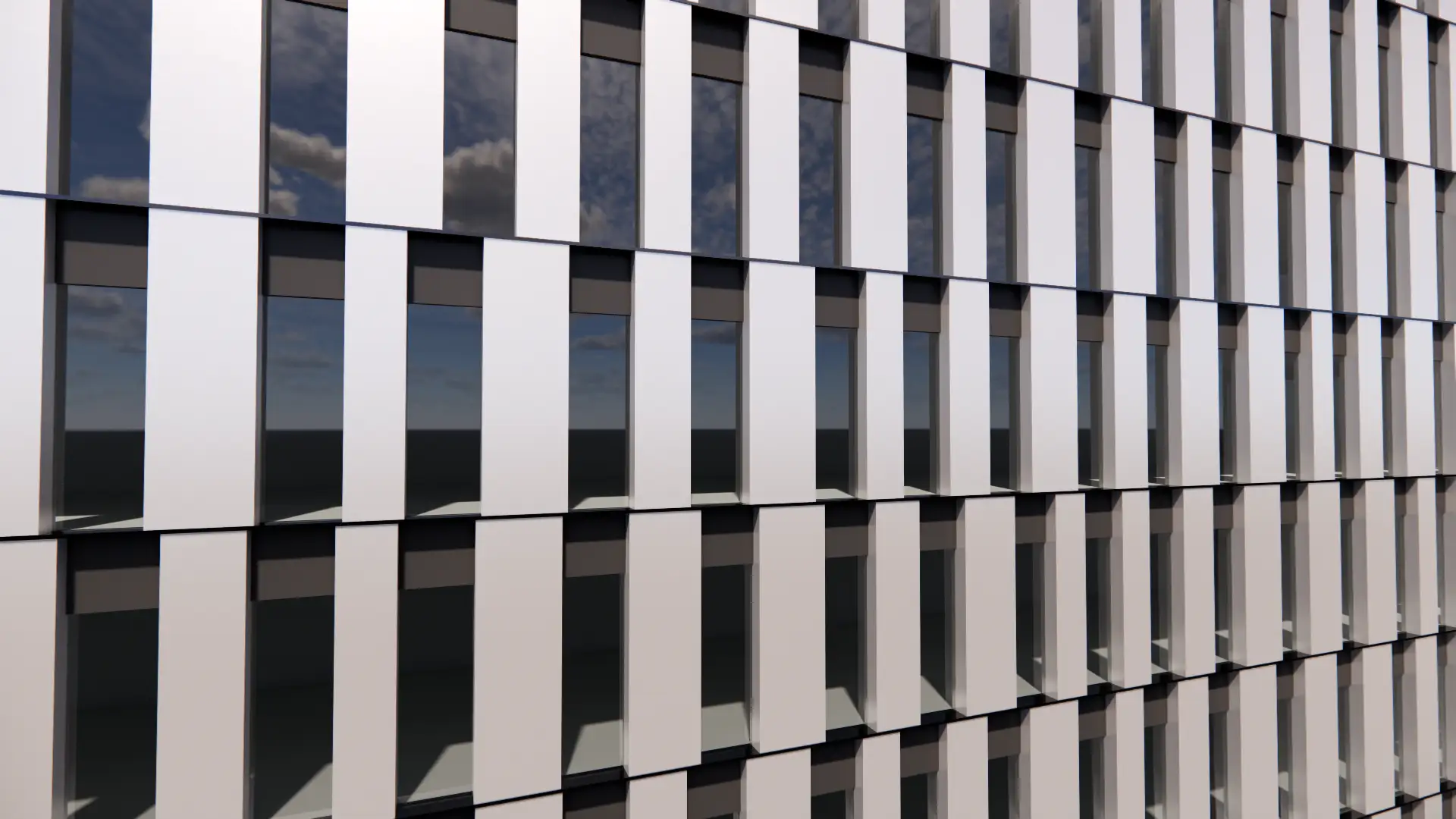

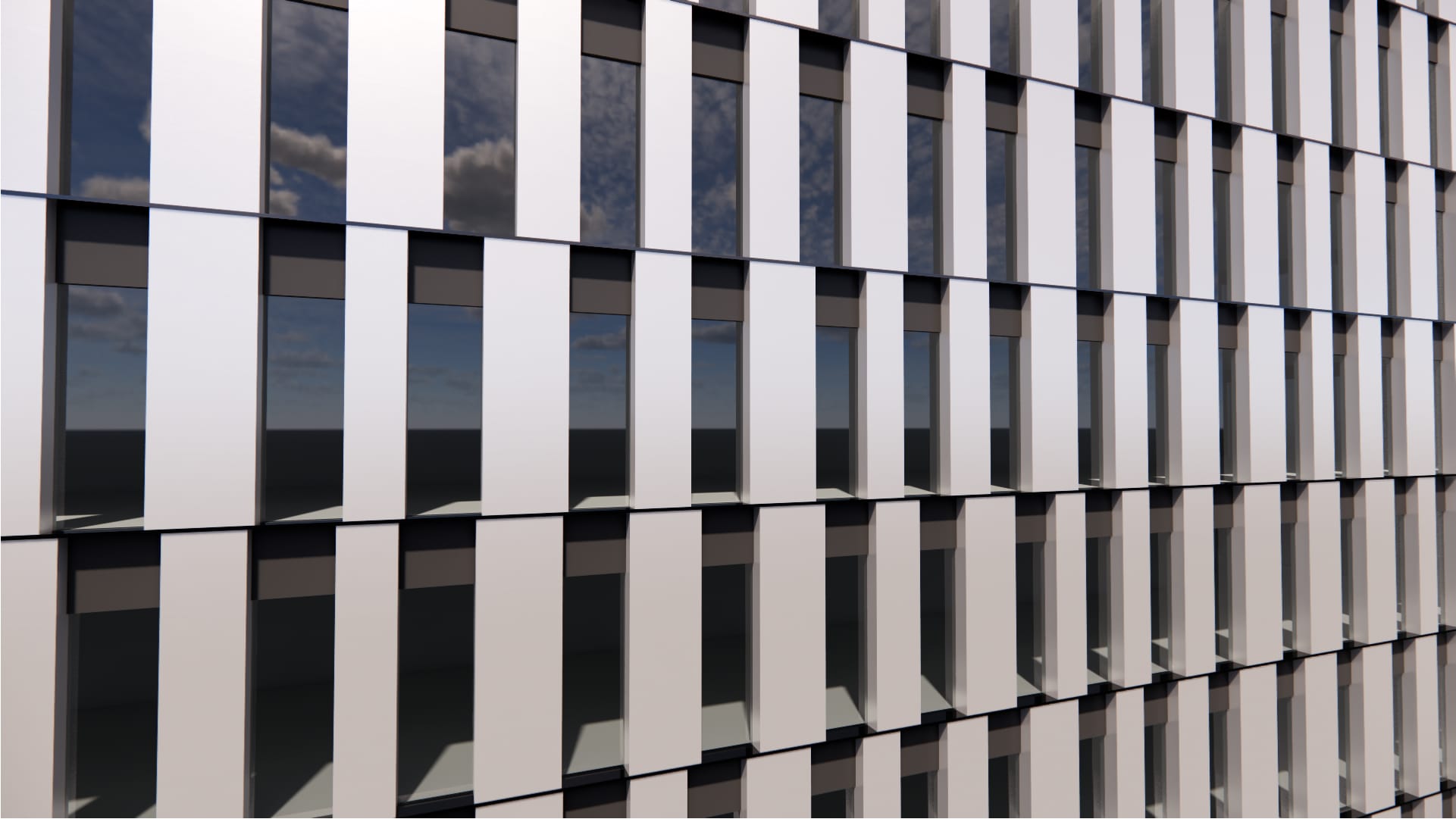

Main Facade View

Staggered Grid

Parametric facade framework for Rhino + Grasshopper

Randomized Panel Sets
A facade defined by flat panels and glazing. The facade is made of a standardized set of panels and glazing units. The panel size and sequence is randomized within a range so that columns in a specified grid are always covered by a panel. The facade has a low window-to-wall ratio (<40%). Given sufficient solar exposure the panels can be used for building-integrated-photovoltaics (BIPV).

Tags:

Single-Skin
Irregular
Flat Panels
Vertical
Metal
Low WWR Capable (< 40%), BIPV Ready

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Facet for Rhino

8

14-day free trial · installs via Rhino’s Package Manager.
