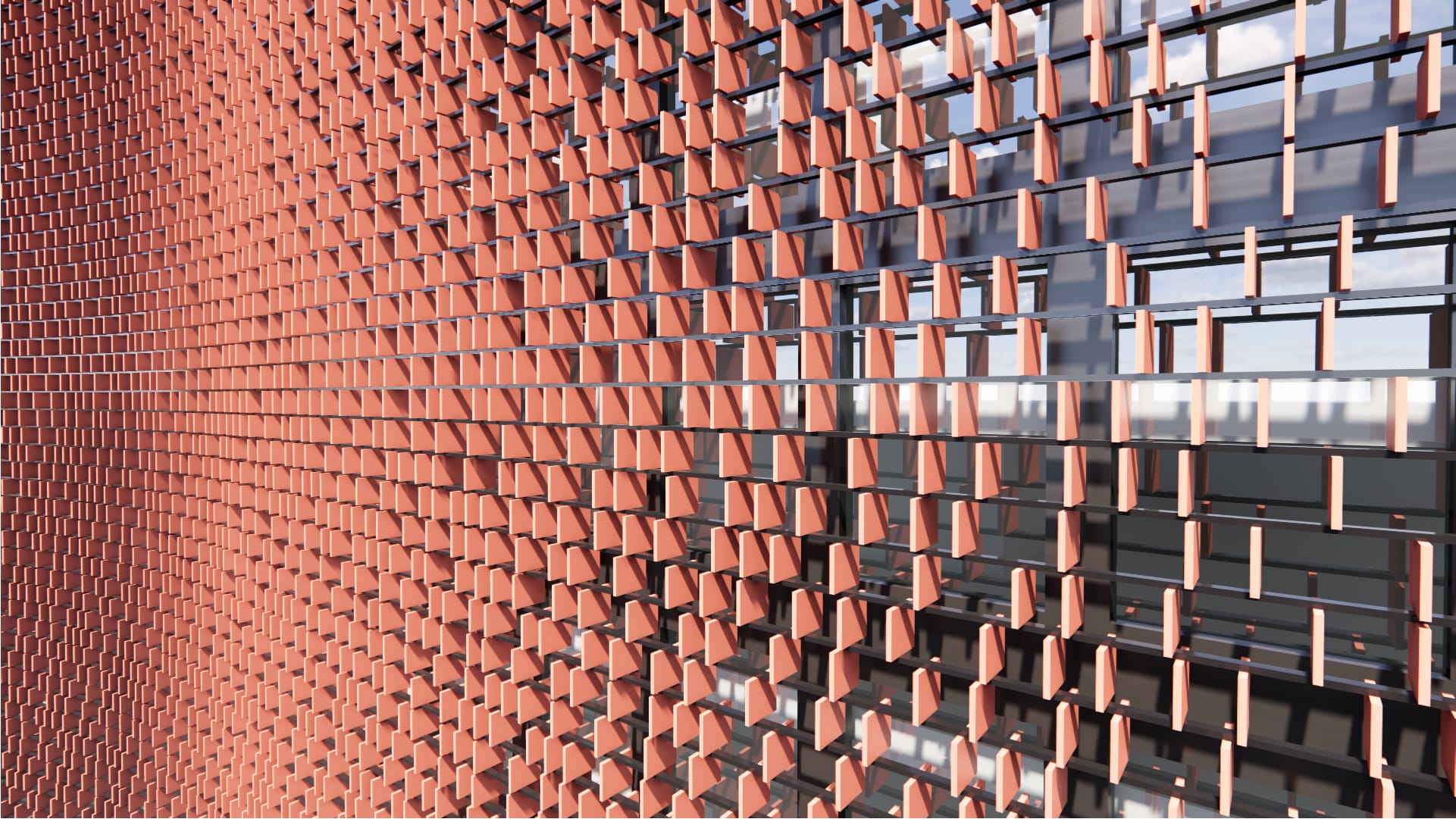

Main Facade View
Tile Ripple
Randomized Tile Screen
A screen made of small-scale vertical, rectangular tiles arranged in a dense, scattered configuration. This creates a textured exterior that provides effective passive shading.

Tags:

Screen
Skin/ Wrapping / Monolithic
Small Scale/Texture
Directionless
Metal
Low WWR Capable (< 40%), Passive Shading, Design for Disassembly

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8
Download .GH Framework
Subscribe to Download

Already a member? Log in to download

Request Early Access

Already a member? Log in to download

Setup instructions:

  1. Download the .GH Framework script.

  2. Open Rhino, launch Grasshopper, and open the script.

  3. Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
