Timber Veil

Randomized Vertical Batten Screen

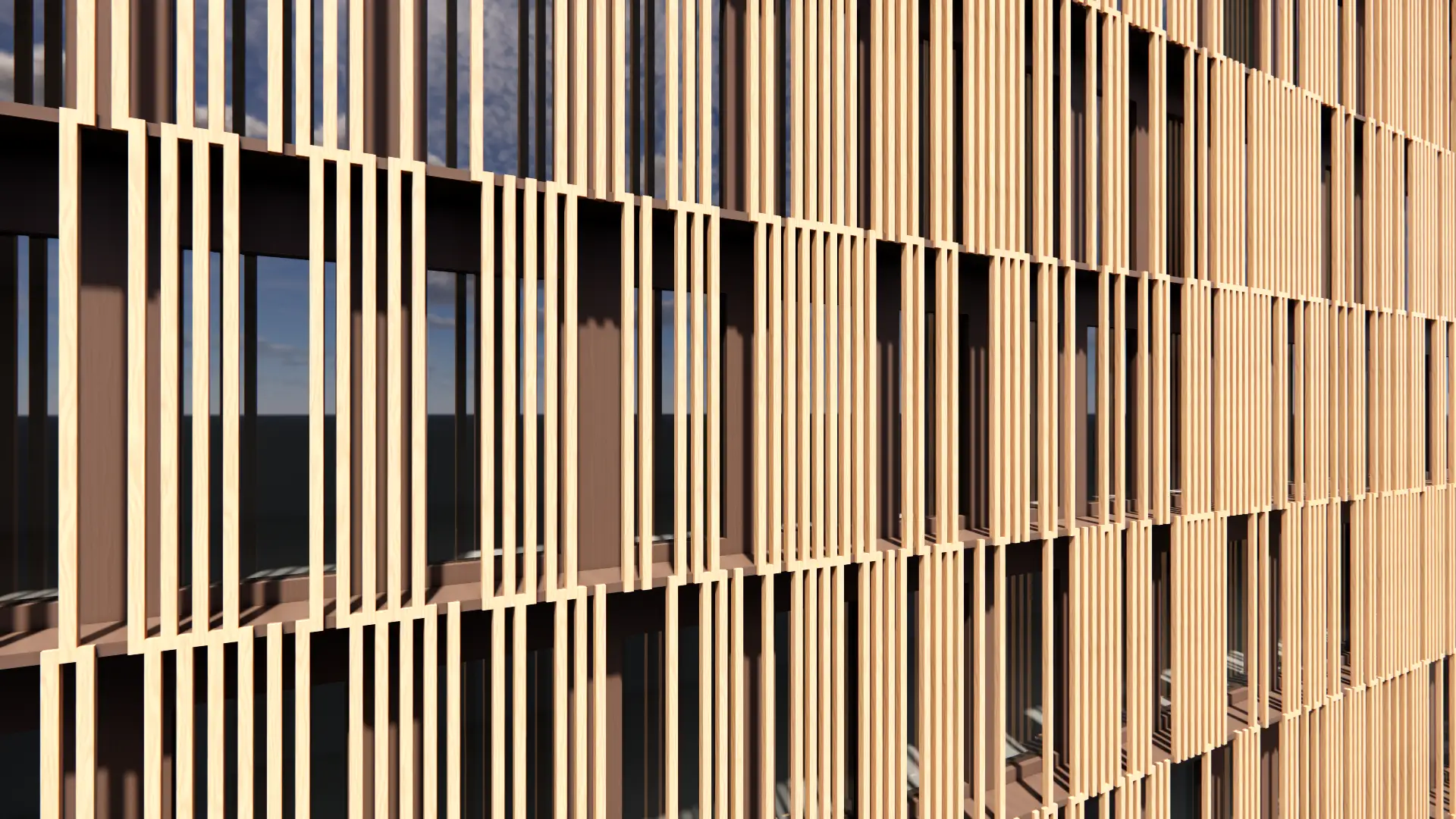

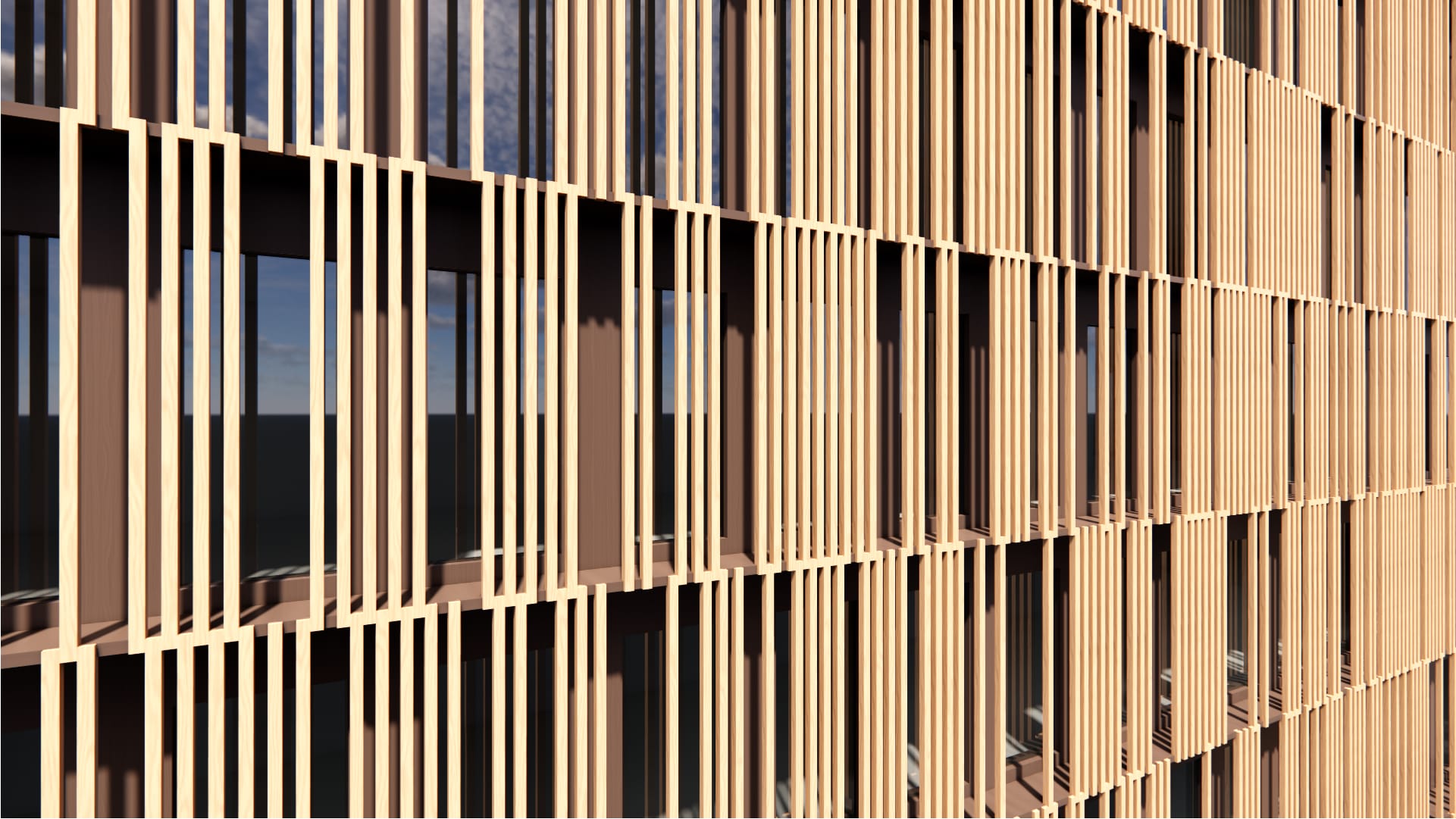

A double-skin facade made of slender, floor-high, vertical timber battens. The battens are interlocked floor to floor and reduced following a randomized logic to create a varied texture. The dense battens provide effective passive shading.

Tags:

Screen

Irregular

Sticks/Filigree

Vertical

Timber

Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
