Undulating Ribs
Parametric facade framework for Rhino + Grasshopper

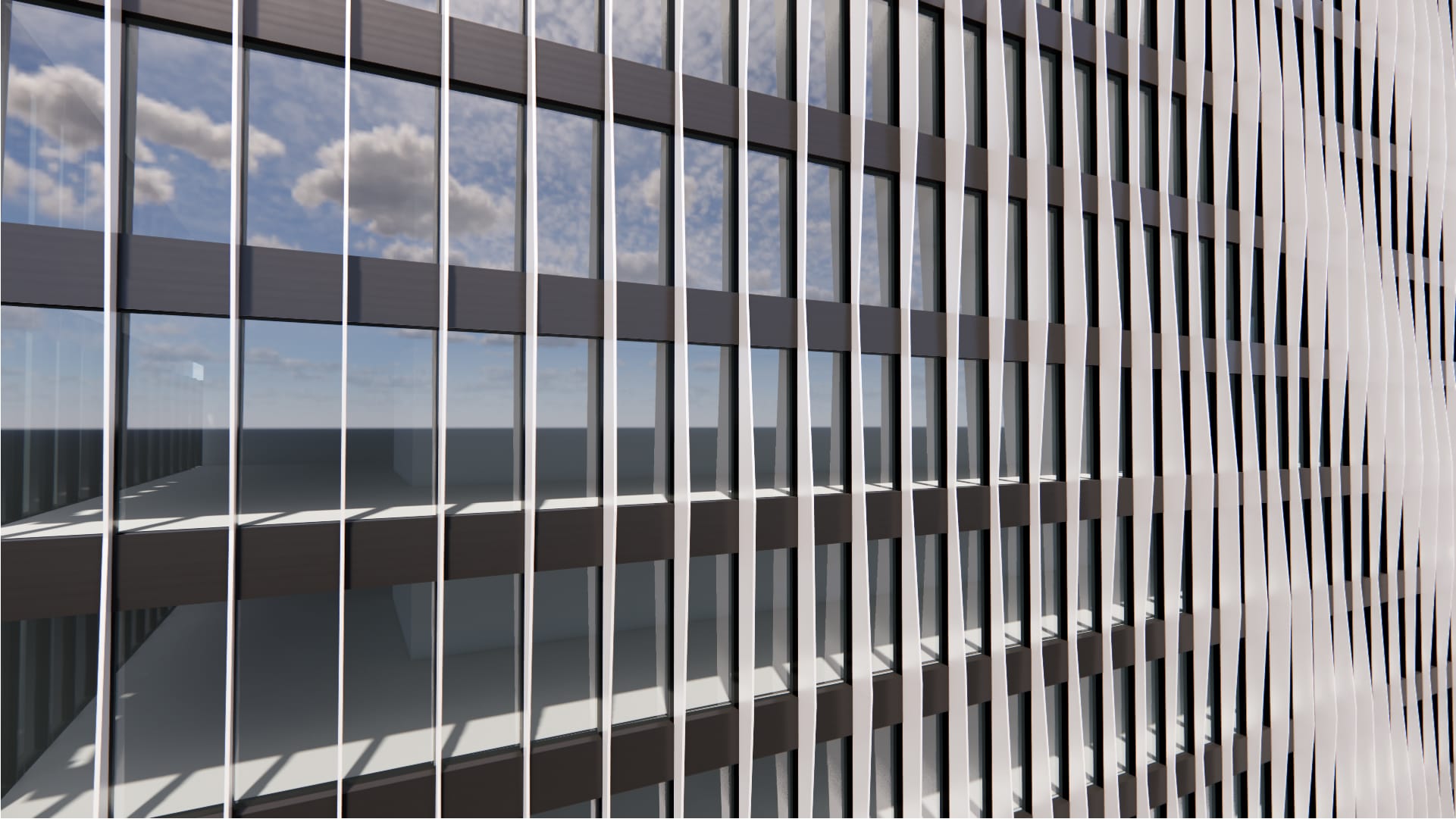

Undulating Vertical Fins
A screen system defined by regularly spaced vertical fins following an undulating geometry. The fin depth varies to create the undulating effect that is most visible from an angle. The fins can provide effective passive shading against low-angle sun.
Single-Skin
Orthogonal Grid
Fins
Vertical
Metal
Low WWR Capable (< 40%), Passive Shading
Vertical surfaces & polysurfaces
14-day free trial · installs via Rhino’s Package Manager.
