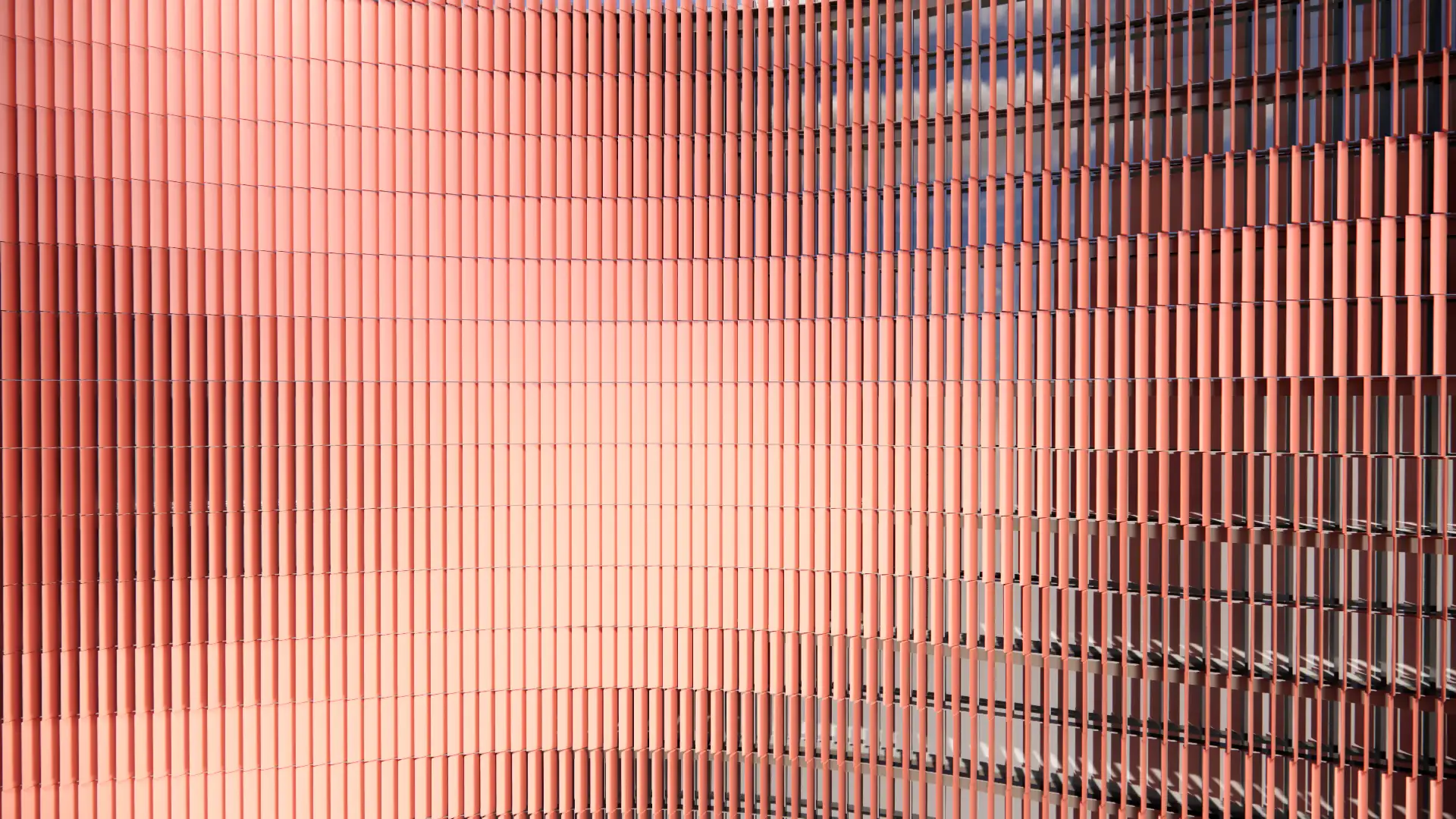

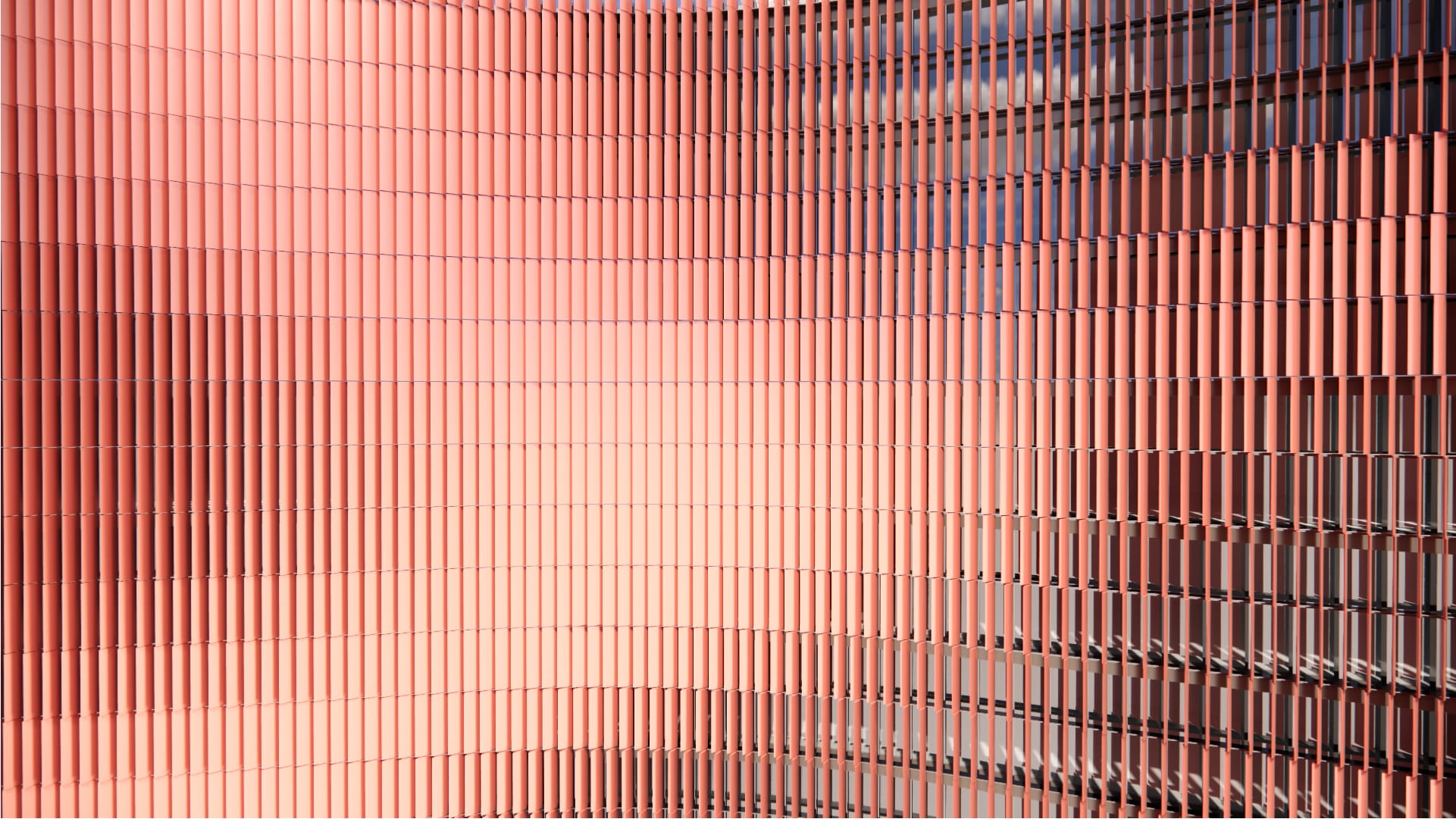

Main Facade View
Vertical Drift
Rotated Fins Gradient
A screen made of slender metal fins arranged in a dense, sweeping configuration. A gradient image controls the rotation of each fin leading to a soft, continuous look. The dense fins provide effective passive shading.

Tags:

Screen
Fluid / Curvilinear
Fins
Vertical
Metal
Low WWR Capable (< 40%), Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8
Download .GH Framework
Subscribe to Download

Already a member? Log in to download

Request Early Access

Already a member? Log in to download

Setup instructions:

  1. Download the .GH Framework script.

  2. Open Rhino, launch Grasshopper, and open the script.

  3. Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
