Vertical Splinters

Continuous Twisting Fins

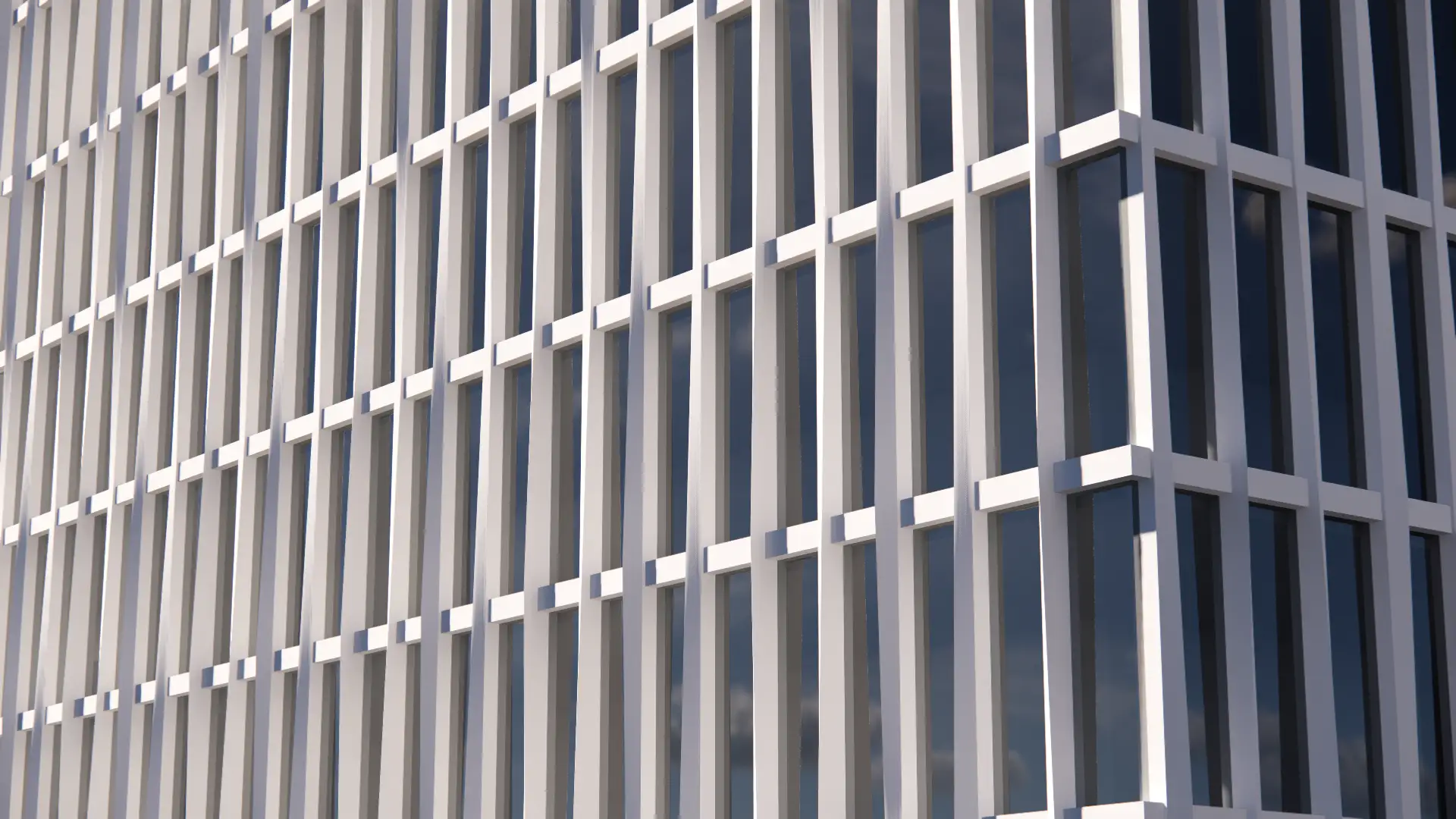

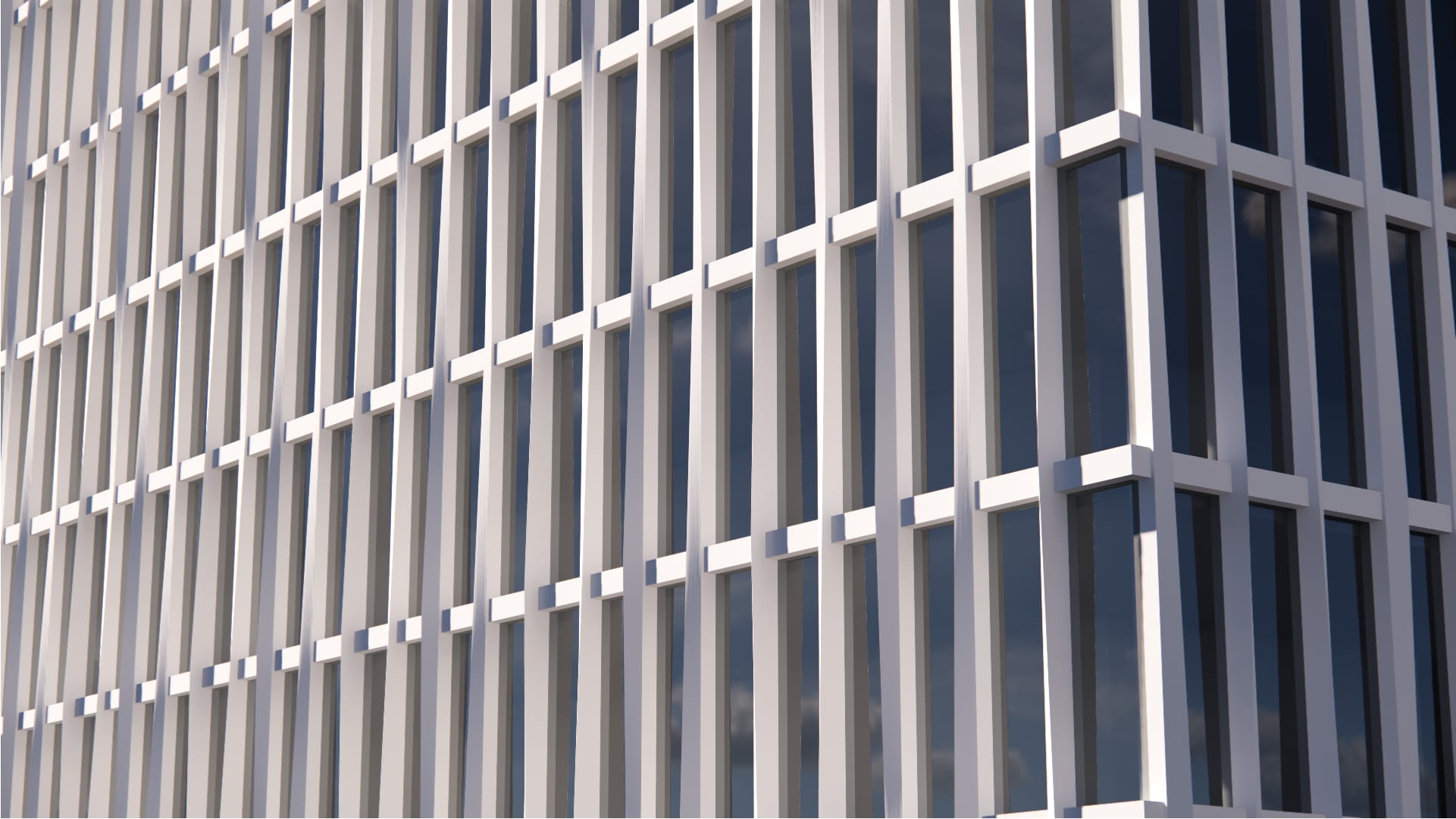

The facade is based on an orthogonal grid and has equally spaced, massive, continuous, vertical fins. The fin’s front edge twists following a randomized logic to create a differentiated, vertical exterior. The massive fins provide partial passive shading.

Tags:

Single-Skin

Orthogonal Grid

Fins

Vertical

Metal, Concrete

Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
