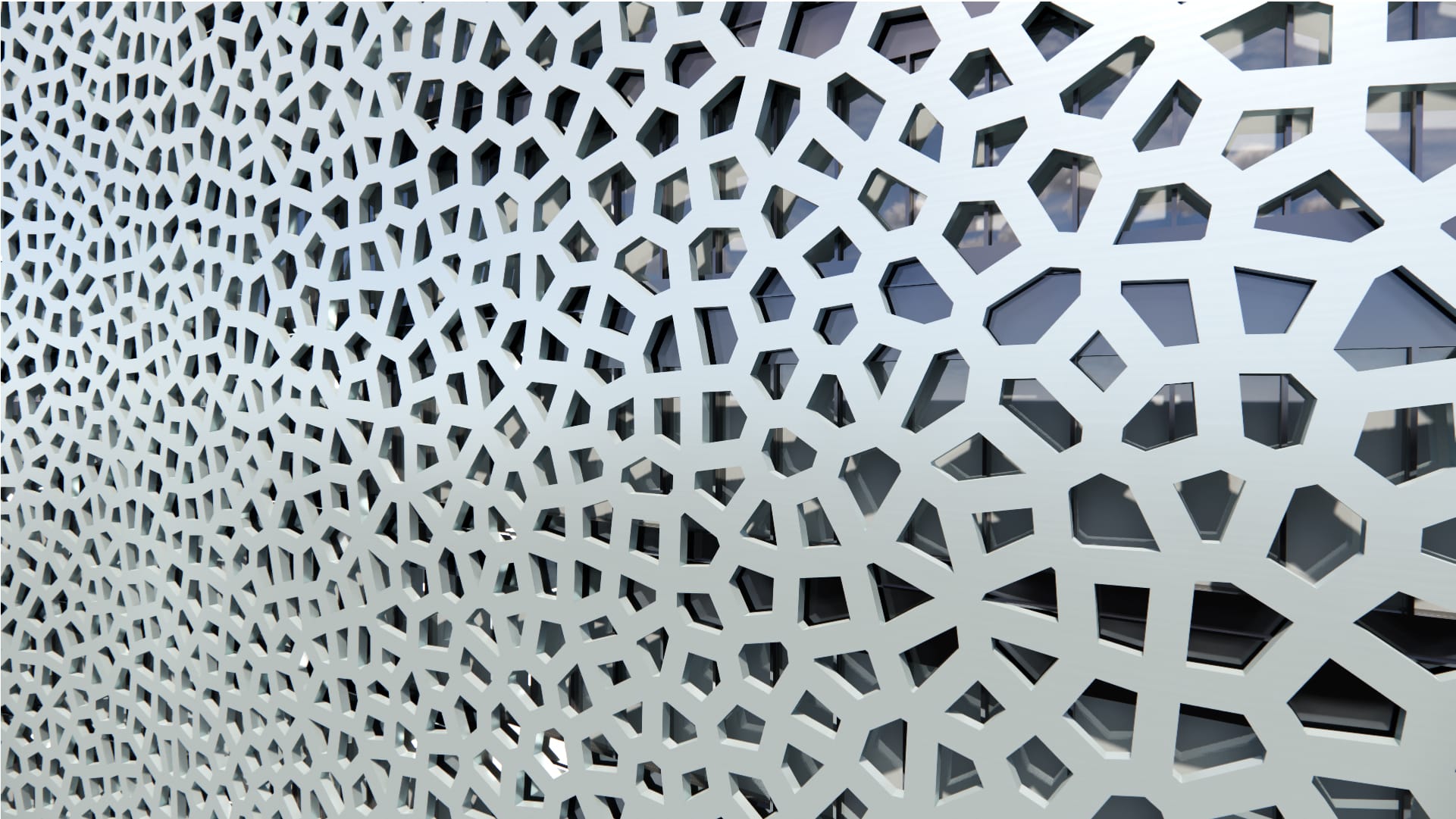

Main Facade View
Voronoi Screen
Voronoi Screen
A massive screen with polygonal perforations following a organic pattern of cellular cutouts. Using the Voronoi algorithm, apertures of varying sizes and polygonal shapes are generated to create a textured exterior. The pattern provides effective passive shading.

Tags:

Screen
Skin/ Wrapping / Monolithic
Perforated Surface
Directionless
Metal
Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8
Download .GH Framework
Subscribe to Download

Already a member? Log in to download

Request Early Access

Already a member? Log in to download

Setup instructions:

  1. Download the .GH Framework script.

  2. Open Rhino, launch Grasshopper, and open the script.

  3. Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
