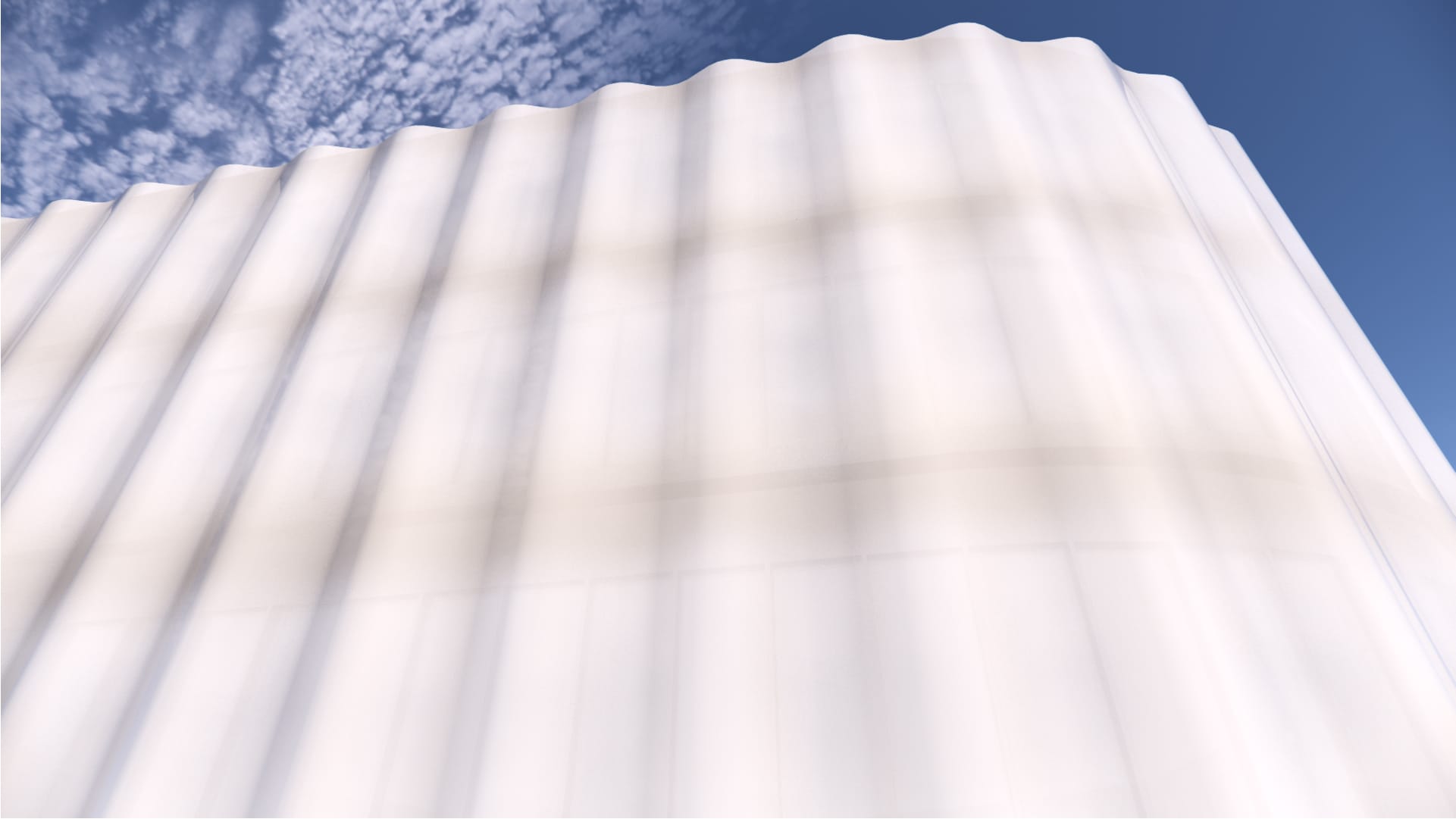

Main Facade View
Wave Screen
Wave Screen
A continuous, closed screen system made of a uniform, sine-wave profile. The screen can either cover a solid facade or be realized in a translucent material to deliver effective passive shading.

Tags:

Screen, Closed
Skin/ Wrapping / Monolithic
Continuous Surface
Vertical
Metal
Passive Shading

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

8
Download .GH Framework
Subscribe to Download

Already a member? Log in to download

Request Early Access

Already a member? Log in to download

Setup instructions:

  1. Download the .GH Framework script.

  2. Open Rhino, launch Grasshopper, and open the script.

  3. Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
