Random Panels

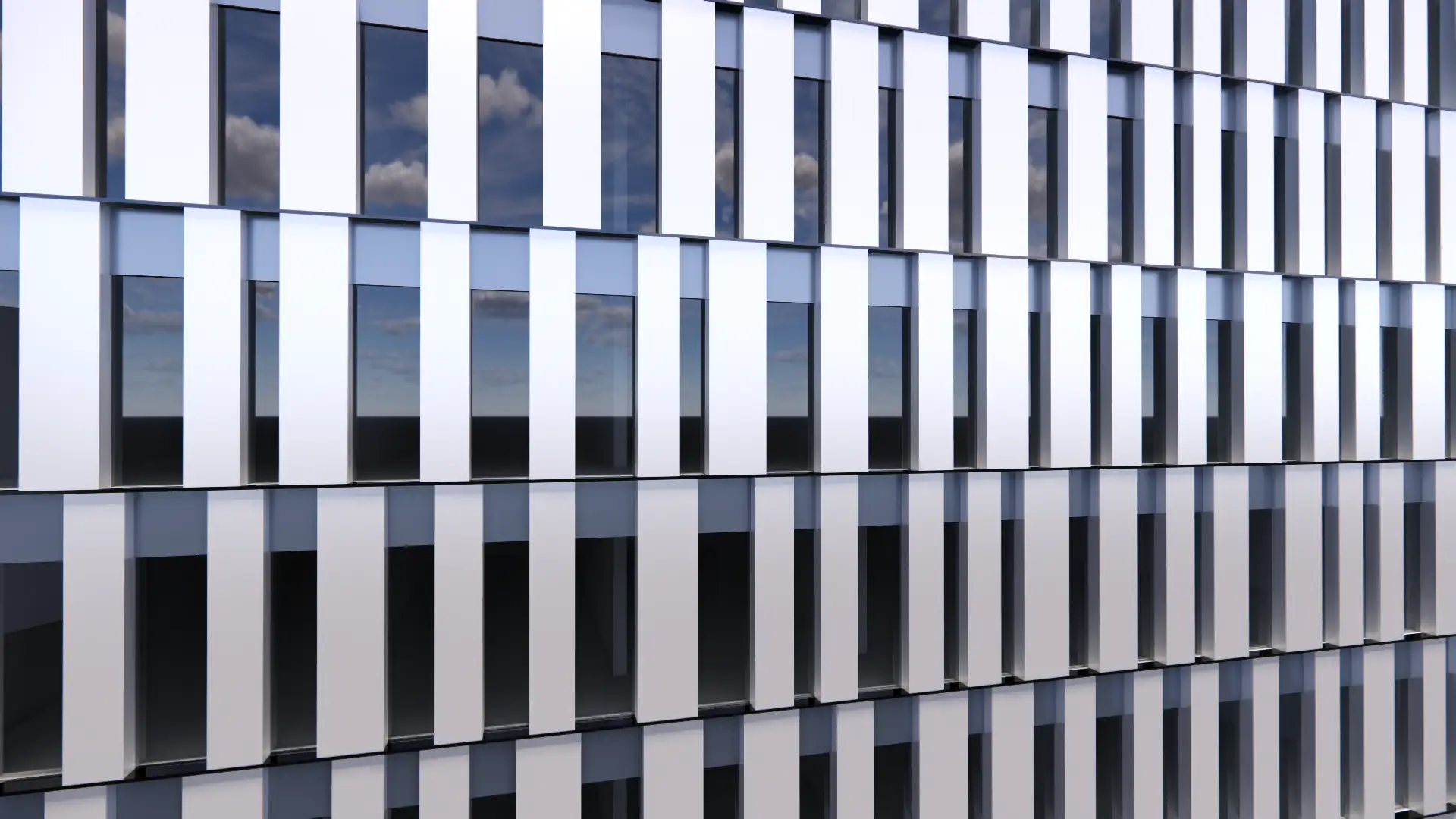

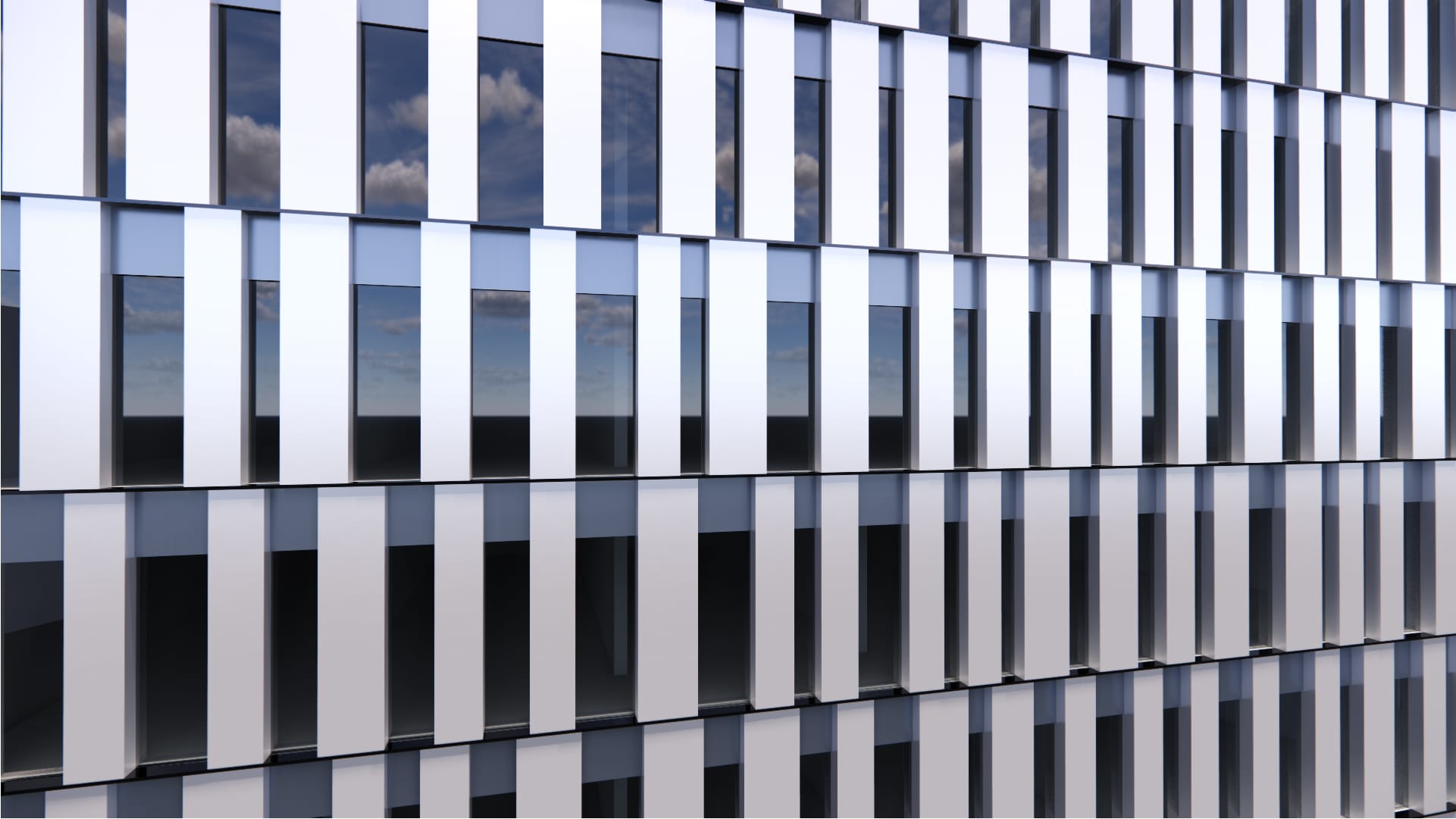

Randomized Vertical Panels

A facade defined by flat panels and glazing. The facade is made of a standardized set of panels and glazing units that are then randomly sequenced to create an irregular look. Given sufficient solar exposure the panels can be used for building-integrated-photovoltaics (BIPV).

Tags:

Single-Skin

Irregular

Flat Panels

Vertical

Metal

Low WWR Capable (< 40%), BIPV Ready

Supported Inputs:

Plugins required:

Rhino Version:

Vertical surfaces & polysurfaces

Elefront

Already a member? Log in to download

Setup instructions:

Download the .GH Framework script.
Open Rhino, launch Grasshopper, and open the script.
Assign the name GH_Facet Facade to the surface or polysurface you want to apply the facade to. (Under Properties: Object > Name)
